SDWA.01

Taoglas

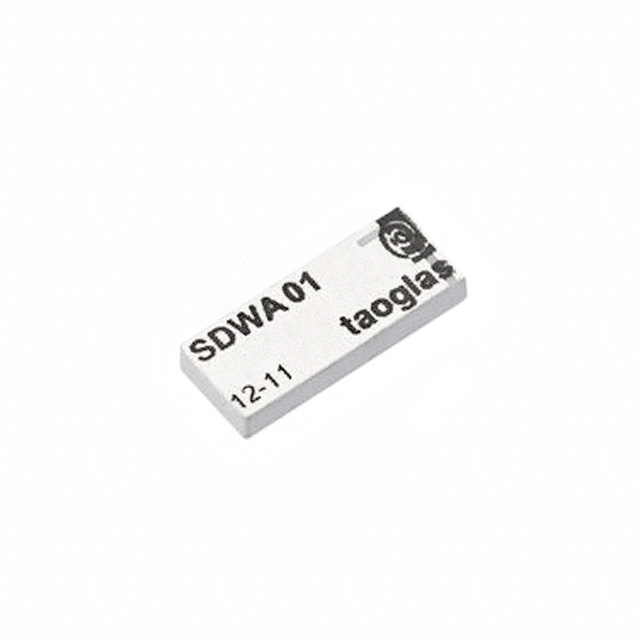

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SDWA.01
Manufacturer/Brand:	Taoglas
Product description	RF ANT 2.4GHZ/5.8GHZ CHIP SLD
Datasheets:	SDWA.01.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	21577 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 21577 pcs

Reference Price (In US Dollars)

1 pcs: $4.698

100 pcs: $3.523

500 pcs: $2.349

1000 pcs: $1.762

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$4.698

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SDWA.01

Part Number	SDWA.01	Manufacturer	Taoglas
Description	RF ANT 2.4GHZ/5.8GHZ CHIP SLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	21577 pcs	Data sheet	SDWA.01.pdf
VSWR	2.5, 3	Termination	Solder
Series	-	Return Loss	-
Packaging	Cut Tape (CT)	Other Names	931-1159-1
Number of Bands	2	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	7 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Height (Max)	0.059" (1.50mm)	Gain	2.59dBi, 3.38dBi
Frequency Range	2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.85GHz	Frequency Group	UHF (2 GHz ~ 3 GHz), SHF (f > 4 GHz)
Frequency (Center/Band)	2.4GHz, 5.8GHz	Features	-
Detailed Description	2.4GHz, 5.8GHz WLAN Chip RF Antenna 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.85GHz 2.59dBi, 3.38dBi Solder Surface Mount	Applications	WLAN
Antenna Type	Chip
