HM78D-755470MLFTR

TT Electronics

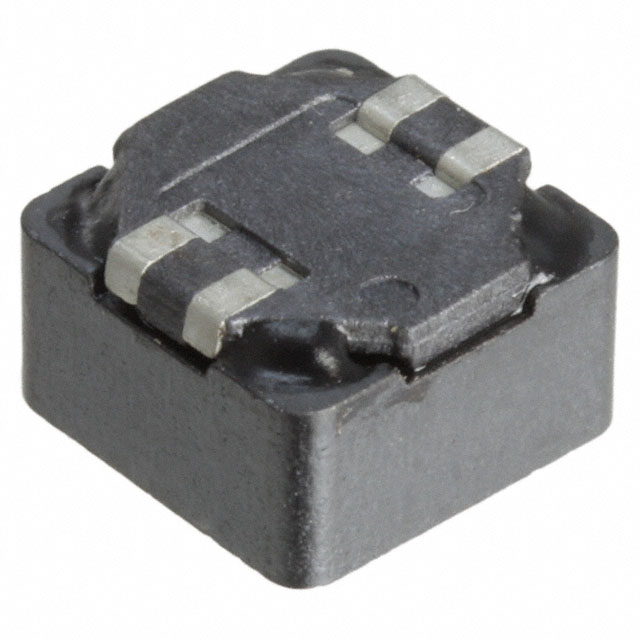

Image may be representation. See specifications for product details.

Product Overview

Part Number:	HM78D-755470MLFTR
Manufacturer/Brand:	TT Electronics
Product description	INDUCT ARRAY 2 COIL 47UH SMD
Datasheets:	HM78D-755470MLFTR.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	73742 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 73742 pcs

Reference Price (In US Dollars)

1 pcs: $0.578

10 pcs: $0.535

100 pcs: $0.387

500 pcs: $0.296

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.578

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of HM78D-755470MLFTR

Part Number	HM78D-755470MLFTR	Manufacturer	TT Electronics
Description	INDUCT ARRAY 2 COIL 47UH SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	73742 pcs	Data sheet	HM78D-755470MLFTR.pdf
Tolerance	±20%	Size / Dimension	0.303" L x 0.303" W (7.70mm x 7.70mm)
Shielding	Shielded	Series	HM78D
Ratings	-	Packaging	Cut Tape (CT)
Package / Case	Nonstandard	Other Names	987-1442-1
Operating Temperature	-40°C ~ 125°C	Number of Coils	2
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance - Connected In Series	198.6µH
Inductance - Connected In Parallel	47µH	Height	0.189" (4.80mm)
Detailed Description	Shielded 2 Coil Inductor Array 198.6µH Inductance - Connected in Series 47µH Inductance - Connected in Parallel 216 mOhm DC Resistance (DCR) - Parallel 1.15A Nonstandard	DC Resistance (DCR) - Series	865 mOhm
DC Resistance (DCR) - Parallel	216 mOhm	Current Saturation - Series	710mA
Current Saturation - Parallel	1.41A	Current Rating - Series	573mA
Current Rating - Parallel	1.15A
