TSC (Taiwan Semiconductor)

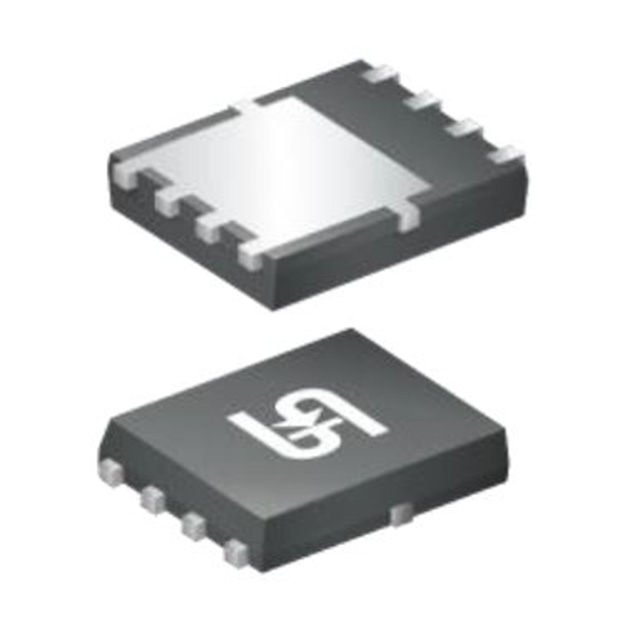

| Part Number | TSM6502CR RLG | Manufacturer | TSC (Taiwan Semiconductor) |
|---|---|---|---|
| Description | MOSFET N/P-CH 60V 24A/18A 8PDFN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 180449 pcs | Data sheet | TSM6502CR RLG.pdf |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA | Supplier Device Package | 8-PDFN (5x6) |
| Series | - | Rds On (Max) @ Id, Vgs | 34 mOhm @ 5.4A, 10V, 68 mOhm @ 4A, 10V |
| Power - Max | 40W | Packaging | Original-Reel® |
| Package / Case | 8-PowerTDFN | Other Names | TSM6502CR RLGDKR TSM6502CR RLGDKR-ND TSM6502CRRLGDKR |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 30 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 1159pF @ 30V, 930pF @ 30V |
| Gate Charge (Qg) (Max) @ Vgs | 10.3nC @ 4.5V, 9.5nC @ 4.5V | FET Type | N and P-Channel |
| FET Feature | Standard | Drain to Source Voltage (Vdss) | 60V |
| Detailed Description | Mosfet Array N and P-Channel 60V 24A (Tc), 18A (Tc) 40W Surface Mount 8-PDFN (5x6) | Current - Continuous Drain (Id) @ 25°C | 24A (Tc), 18A (Tc) |
