BAT54CD REG

TSC (Taiwan Semiconductor)

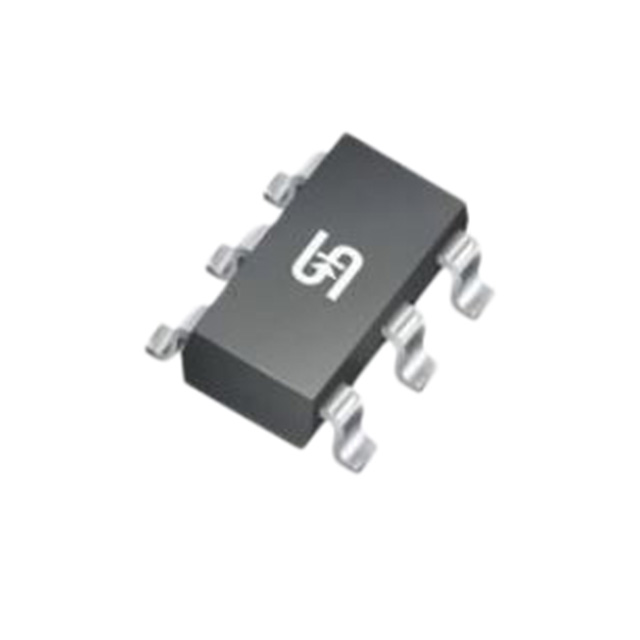

Image may be representation. See specifications for product details.

Product Overview

Part Number:	BAT54CD REG
Manufacturer/Brand:	TSC (Taiwan Semiconductor)
Product description	DIODE ARRAY SCHOTTKY 30V SOT363
Datasheets:	BAT54CD REG.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	858193 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 858193 pcs

Reference Price (In US Dollars)

12000 pcs: $0.028

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.028

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of BAT54CD REG

Part Number	BAT54CD REG	Manufacturer	TSC (Taiwan Semiconductor)
Description	DIODE ARRAY SCHOTTKY 30V SOT363	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	858193 pcs	Data sheet	BAT54CD REG.pdf
Voltage - Forward (Vf) (Max) @ If	1V @ 100mA	Voltage - DC Reverse (Vr) (Max)	30V
Supplier Device Package	SOT-363	Speed	Small Signal =< 200mA (Io), Any Speed
Series	-	Reverse Recovery Time (trr)	5ns
Packaging	Tape & Reel (TR)	Package / Case	6-TSSOP, SC-88, SOT-363
Other Names	BAT54CD REG-ND BAT54CDREG	Operating Temperature - Junction	-55°C ~ 125°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	15 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Diode Type	Schottky	Diode Configuration	2 Pair Common Anode
Detailed Description	Diode Array 2 Pair Common Anode Schottky 30V 200mA (DC) Surface Mount 6-TSSOP, SC-88, SOT-363	Current - Reverse Leakage @ Vr	2µA @ 25V
Current - Average Rectified (Io) (per Diode)	200mA (DC)
