TMC4670-BI

TRINAMIC Motion Control GmbH

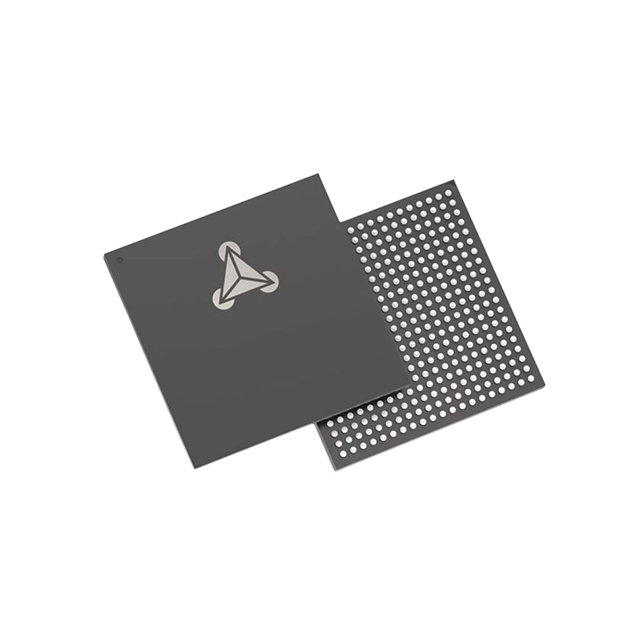

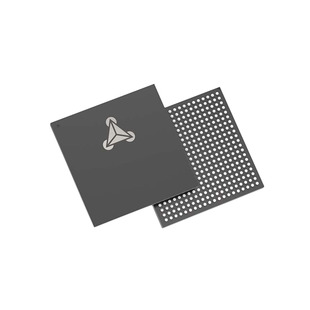

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TMC4670-BI
Manufacturer/Brand:	TRINAMIC Motion Control GmbH
Product description	IC SERVO CONTROLLER, FOC, SPI, P
Datasheets:	TMC4670-BI.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	1236 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 1236 pcs

Reference Price (In US Dollars)

1 pcs: $28.534

10 pcs: $26.75

25 pcs: $25.502

100 pcs: $24.075

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$28.534

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TMC4670-BI

Part Number	TMC4670-BI	Manufacturer	TRINAMIC Motion Control GmbH
Description	IC SERVO CONTROLLER, FOC, SPI, P	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1236 pcs	Data sheet	TMC4670-BI.pdf
Voltage - Supply	1.2V, 2.5V, 3.3V	Voltage - Load	-
Technology	Power MOSFET	Supplier Device Package	256-FBGA (17x17)
Step Resolution	-	Series	-
Packaging	Tray	Package / Case	256-BGA
Output Configuration	Pre-Driver - High Side/Low Side	Other Names	00-0155 1460-1214
Operating Temperature	-40°C ~ 100°C (TJ)	Mounting Type	Surface Mount
Motor Type - Stepper	-	Motor Type - AC, DC	Brushless DC (BLDC), PMSM, Stepper
Moisture Sensitivity Level (MSL)	3 (168 Hours)	Manufacturer Standard Lead Time	6 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Interface	SPI
Function	Controller - Commutation, Direction Management	Detailed Description	Motor Driver Power MOSFET SPI 256-FBGA (17x17)
Current - Output	-	Applications	Servo
