TSL1315RA-680K3R0-PF

TDK CorporationTDK Corporation

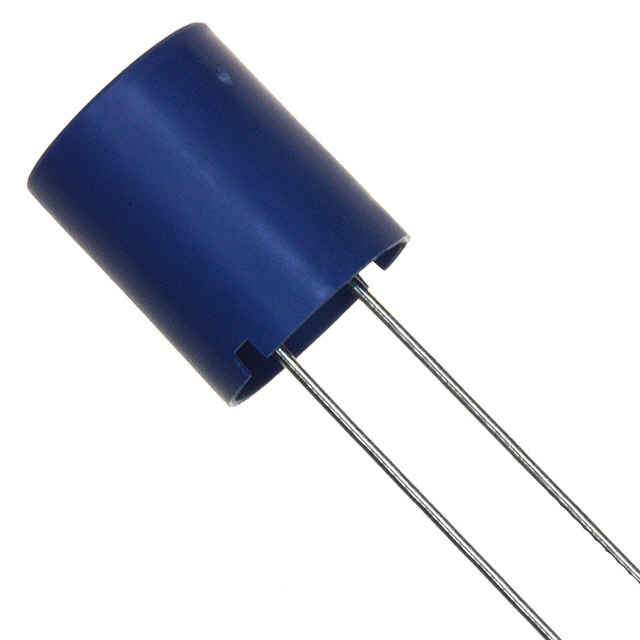

TSL1315RA-680K3R0-PF Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: TSL1315RA-680K3R0-PF
Manufacturer/Brand: TDK Corporation
Product description FIXED IND 68UH 3A 68 MOHM TH
Datasheets: TSL1315RA-680K3R0-PF.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 4580 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 4580 pcs
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of TSL1315RA-680K3R0-PF

Part Number TSL1315RA-680K3R0-PF Manufacturer TDK Corporation
Description FIXED IND 68UH 3A 68 MOHM TH Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 4580 pcs Data sheet TSL1315RA-680K3R0-PF.pdf
Type - Tolerance ±10%
Supplier Device Package - Size / Dimension 0.551" Dia (14.00mm)
Shielding Unshielded Series TSL
Ratings - Q @ Freq 40 @ 2.52MHz
Packaging Tape & Box (TB) Package / Case Radial
Other Names 445-3727-3
TSL1315RA680K3R0PF		 Operating Temperature -20°C ~ 85°C
Mounting Type Through Hole Moisture Sensitivity Level (MSL) 1 (Unlimited)
Material - Core - Lead Free Status / RoHS Status Lead free / RoHS Compliant
Inductance Frequency - Test 1kHz Inductance 68µH
Height - Seated (Max) 0.669" (17.00mm) Frequency - Self Resonant 4.4MHz
Detailed Description 68µH Unshielded Inductor 3A 68 mOhm Max Radial DC Resistance (DCR) 68 mOhm Max
Current Rating 3A Current - Saturation 4.8A
