NL322522T-1R0J

TDK CorporationTDK Corporation

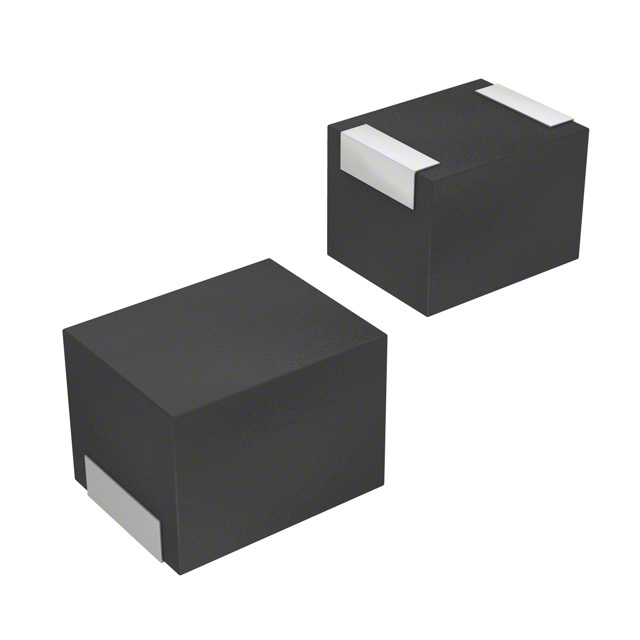

NL322522T-1R0J Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: NL322522T-1R0J
Manufacturer/Brand: TDK Corporation
Product description FIXED IND 1UH 400MA 700 MOHM SMD
Datasheets: NL322522T-1R0J.pdf
RoHs Status Contains lead / RoHS non-compliant
Stock Condition 5658 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 5658 pcs
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of NL322522T-1R0J

Part Number NL322522T-1R0J Manufacturer TDK Corporation
Description FIXED IND 1UH 400MA 700 MOHM SMD Lead Free Status / RoHS Status Contains lead / RoHS non-compliant
Quantity Available 5658 pcs Data sheet NL322522T-1R0J.pdf
Type - Tolerance ±5%
Supplier Device Package 1210 Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Shielding Unshielded Series NL
Ratings - Q @ Freq 30 @ 7.96MHz
Packaging Cut Tape (CT) Package / Case 1210 (3225 Metric)
Other Names 445-1109-1
NL322522T1R0J		 Operating Temperature -40°C ~ 85°C
Mounting Type Surface Mount Moisture Sensitivity Level (MSL) 1 (Unlimited)
Material - Core - Lead Free Status / RoHS Status Contains lead / RoHS non-compliant
Inductance Frequency - Test 7.96MHz Inductance 1µH
Height - Seated (Max) 0.094" (2.40mm) Frequency - Self Resonant 120MHz
Detailed Description 1µH Unshielded Inductor 400mA 700 mOhm Max 1210 (3225 Metric) DC Resistance (DCR) 700 mOhm Max
Current Rating 400mA Current - Saturation -
