ACF321825-101-TD01

TDK Corporation

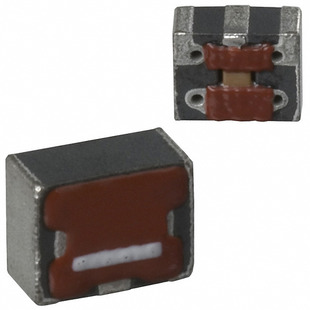

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ACF321825-101-TD01
Manufacturer/Brand:	TDK Corporation
Product description	FILTER LC(T) SMD
Datasheets:	ACF321825-101-TD01.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	293796 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 293796 pcs

Reference Price (In US Dollars)

1000 pcs: $0.089

3000 pcs: $0.085

5000 pcs: $0.08

10000 pcs: $0.075

25000 pcs: $0.07

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.089

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ACF321825-101-TD01

Part Number	ACF321825-101-TD01	Manufacturer	TDK Corporation
Description	FILTER LC(T) SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	293796 pcs	Data sheet	ACF321825-101-TD01.pdf
Voltage - Rated	20V	Values	-
Type	Low Pass	Technology	LC (T-Type)
Size / Dimension	0.126" L x 0.098" W (3.20mm x 2.50mm)	Series	ACF
Resistance - Channel (Ohms)	0.15	Packaging	Tape & Reel (TR)
Package / Case	1210 (3225 Metric), 3 PC Pad	Other Names	445-2072-2 ACF321825-101 ACF321825-101-T ACF321825-101TD01 ACF321825-101TD01-ND ACF321825101TD01
Operating Temperature	-25°C ~ 85°C	Number of Channels	1
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height	0.079" (2.00mm)
Filter Order	3rd	ESD Protection	No
Detailed Description	LC (T-Type) EMI Filter 3rd Order Low Pass 1 Channel 300mA 1210 (3225 Metric), 3 PC Pad	Current	300mA
Center / Cutoff Frequency	-	Attenuation Value	25dB @ 265MHz ~ 340MHz
Applications	Data Lines for Mobile Devices
