Sunon

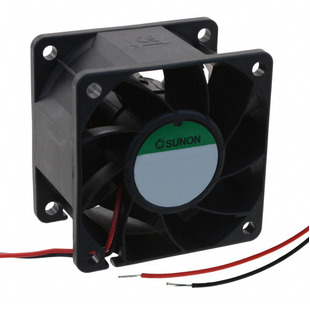

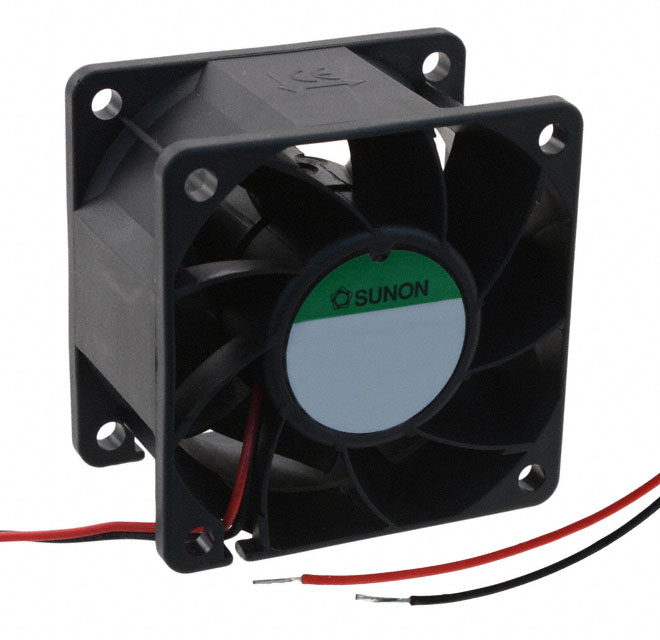

| Part Number | PMD4806PMB1-A.(2).GN | Manufacturer | Sunon |
|---|---|---|---|
| Description | FAN AXIAL 60X38MM 48VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5908 pcs | Data sheet | 1.PMD4806PMB1-A.(2).GN.pdf2.PMD4806PMB1-A.(2).GN.pdf |
| Width | 38.00mm | Weight | 0.198 lb (89.81g) |
| Voltage Range | 24 ~ 55.2VDC | Voltage - Rated | 48VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.920 in H2O (229.2 Pa) |
| Size / Dimension | Square - 60mm L x 60mm H | Series | PMD |
| RPM | 8000 RPM | Power (Watts) | 11.50W |
| Other Names | 259-1409 PMD4806PMB1-A (2).GN PMD4806PMB1-A(2).GN PMD4806PMB1A2GN |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 56.0 dB(A) | Moisture Sensitivity Level (MSL) | Not Applicable |
| Material - Frame | Polybutylene Terephthalate (PBT) | Material - Blade | Polybutylene Terephthalate (PBT) |
| Manufacturer Standard Lead Time | 14 Weeks | Lifetime @ Temp. | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | - | Fan Type | Tubeaxial |
| Current Rating | 0.240A | Bearing Type | Ball |
| Approvals | CE, CUR, TUV, UL | Air Flow | 56.5 CFM (1.58m³/min) |
