Sunon

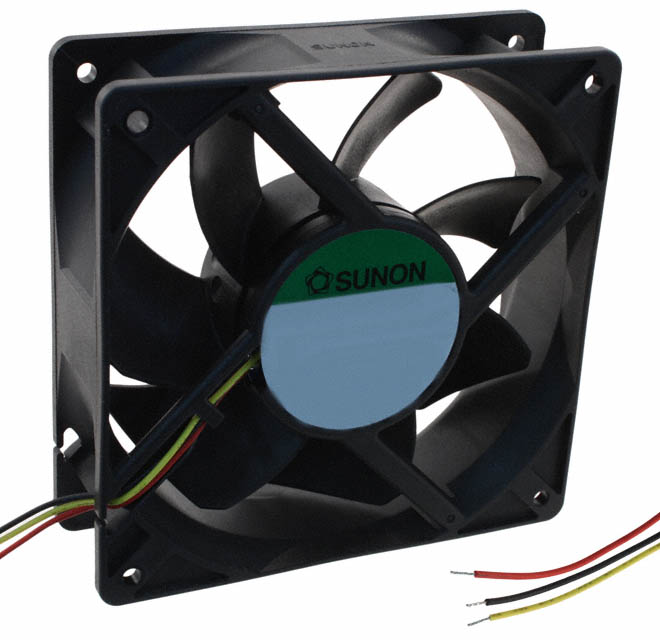

| Part Number | PMD1212PMB3-A.(2).F.GN | Manufacturer | Sunon |
|---|---|---|---|
| Description | FAN AXIAL 120X38MM 12VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5147 pcs | Data sheet | 1.PMD1212PMB3-A.(2).F.GN.pdf2.PMD1212PMB3-A.(2).F.GN.pdf |
| Width | 38.00mm | Weight | 0.727 lb (329.76g) |
| Voltage Range | 6 ~ 13.8VDC | Voltage - Rated | 12VDC |
| Termination | 3 Wire Leads | Static Pressure | 0.430 in H2O (107.1 Pa) |
| Size / Dimension | Square - 120mm L x 120mm H | Series | PMD |
| RPM | 3400 RPM | Power (Watts) | 10.00W |
| Other Names | 259-1377 PMD1212PMB3-A(2).F.GN PMD1212PMB3A2FGN U12COPMB34AFGRA |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 48.0 dB(A) | Material - Frame | Polybutylene Terephthalate (PBT) |
| Material - Blade | Polybutylene Terephthalate (PBT) | Lifetime @ Temp. | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | Speed Sensor (Tach) | Fan Type | Tubeaxial |
| Current Rating | 0.830A | Bearing Type | Ball |
| Approvals | CE, CUR, TUV, UL | Air Flow | 153.0 CFM (4.28m³/min) |
