Sunon

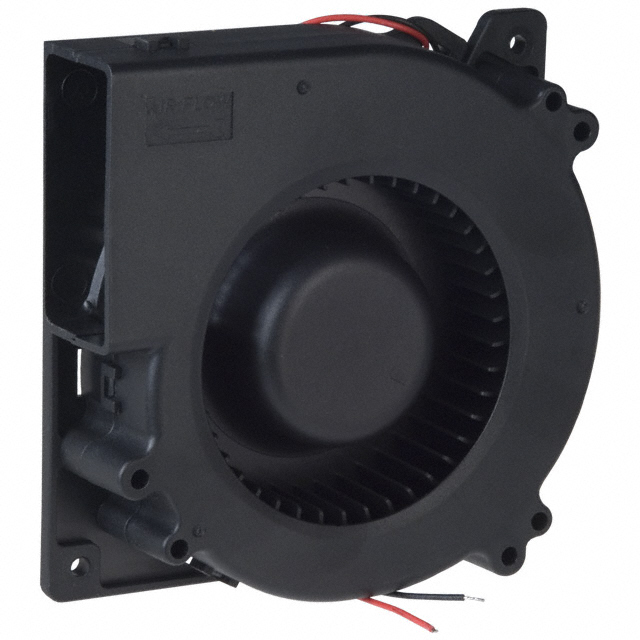

| Part Number | PMB1212PLB2-A.(2).GN | Manufacturer | Sunon |
|---|---|---|---|
| Description | FAN BLOWER 120X32MM 12VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5813 pcs | Data sheet | 1.PMB1212PLB2-A.(2).GN.pdf2.PMB1212PLB2-A.(2).GN.pdf |
| Width | 32.00mm | Weight | 0.551 lb (249.93g) |
| Voltage Range | 6 ~ 13.8VDC | Voltage - Rated | 12VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.890 in H2O (221.7 Pa) |
| Size / Dimension | Square/Rounded - 120mm L x 120mm H | Series | PMB |
| RPM | 2500 RPM | Power (Watts) | 9.80W |
| Other Names | 259-1363 PMB1212PLB2-A(2).GN PMB1212PLB2-A(2)GN PMB1212PLB2A2GN T12COPLB24A-GRA |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 53.8 dB(A) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Polybutylene Terephthalate (PBT) | Material - Blade | Polybutylene Terephthalate (PBT) |
| Manufacturer Standard Lead Time | 14 Weeks | Lifetime @ Temp. | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | - | Fan Type | Blower |
| Current Rating | 0.820A | Bearing Type | Ball |
| Approvals | CE, CUR, TUV, UL | Air Flow | 35.9 CFM (1.01m³/min) |
