Sunon

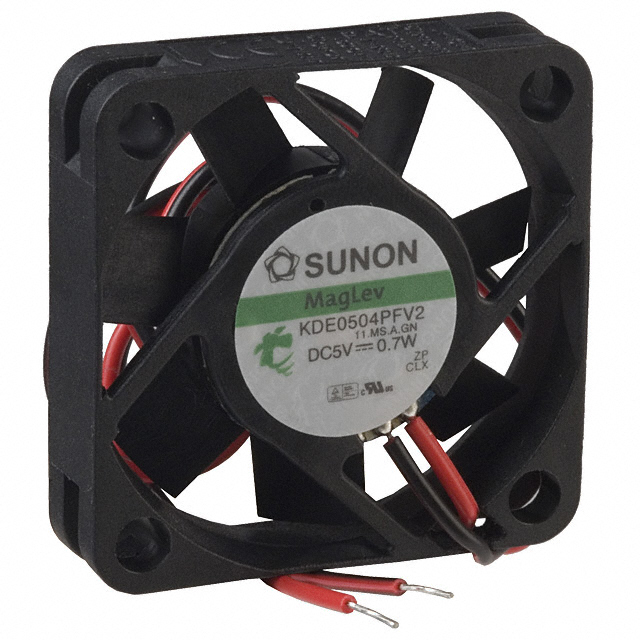

| Part Number | KDE0504PFV2.11.MS.A.GN | Manufacturer | Sunon |
|---|---|---|---|
| Description | FAN AXIAL 40X10MM VAPO 5VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5335 pcs | Data sheet | 1.KDE0504PFV2.11.MS.A.GN.pdf2.KDE0504PFV2.11.MS.A.GN.pdf3.KDE0504PFV2.11.MS.A.GN.pdf |
| Width | 10.00mm | Weight | 0.037 lb (16.78g) |
| Voltage Range | 4 ~ 6VDC | Voltage - Rated | 5VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.130 in H2O (32.4 Pa) |
| Size / Dimension | Square - 40mm L x 40mm H | Series | MagLev® KDE |
| RPM | 5800 RPM | Power (Watts) | 700mW |
| Other Names | 259-1343 E0540PFU24A-GRG KDE0504PFV2 11.MS.A.GN |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 27.0 dB(A) | Material - Frame | Polybutylene Terephthalate (PBT) |
| Material - Blade | Polybutylene Terephthalate (PBT) | Lifetime @ Temp. | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | - | Fan Type | Tubeaxial |
| Current Rating | 0.140A | Bearing Type | Vapo-Bearing™ |
| Approvals | CE, CUR, TUV, UL | Air Flow | 7.0 CFM (0.196m³/min) |
