Sunon

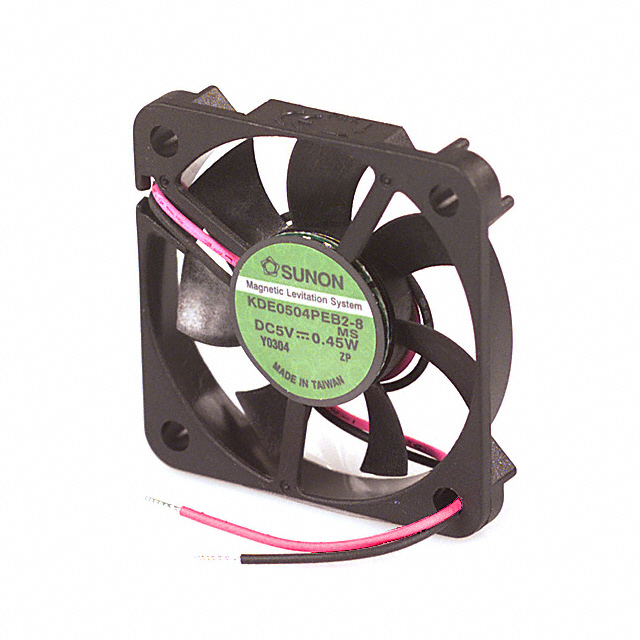

| Part Number | KDE0504PEB2-8 (MS) | Manufacturer | Sunon |
|---|---|---|---|
| Description | FAN AXIAL 40X6.9MM 5VDC WIRE | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 4724 pcs | Data sheet | 1.KDE0504PEB2-8 (MS).pdf2.KDE0504PEB2-8 (MS).pdf |
| Width | 6.90mm | Weight | 0.017 lb (7.71g) |
| Voltage Range | 3 ~ 6VDC | Voltage - Rated | 5VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.070 in H2O (17.4 Pa) |
| Size / Dimension | Square - 40mm L x 40mm H | Series | KDE |
| RPM | 6000 RPM | Power (Watts) | 550mW |
| Other Names | 259-1184 E0540P6A28---RK KDE0504PEB2-8(MS) KDE0504PEB28MS |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 28.0 dB(A) | Material - Frame | Polybutylene Terephthalate (PBT) |
| Material - Blade | Polybutylene Terephthalate (PBT) | Lifetime @ Temp. | - |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Ingress Protection | - |
| Features | - | Fan Type | Tubeaxial |
| Current Rating | 0.110A | Bearing Type | Ball |
| Approvals | CE, CUR, TUV, UL | Air Flow | 5.3 CFM (0.148m³/min) |
