Sunon

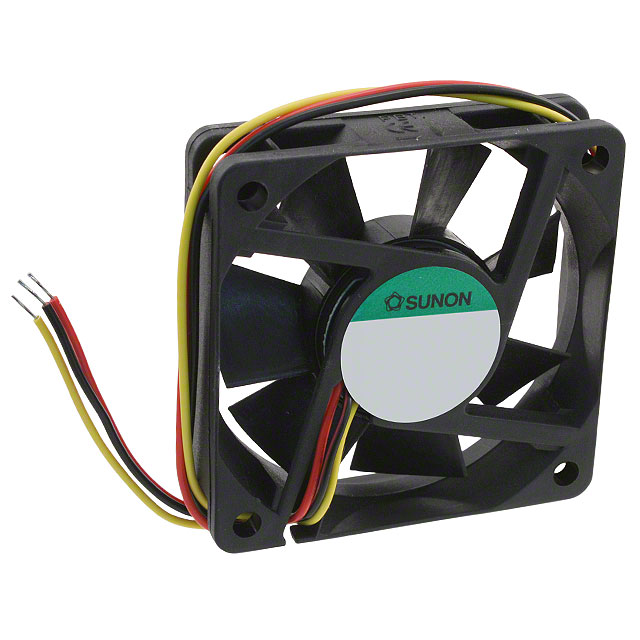

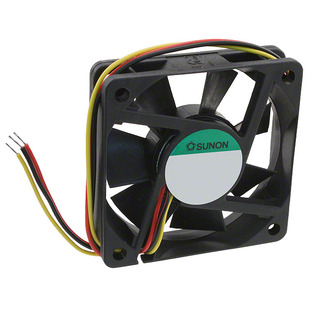

| Part Number | KD1206PHB1 (2).F.GN | Manufacturer | Sunon |
|---|---|---|---|
| Description | FAN AXIAL 60X15MM 12VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5219 pcs | Data sheet | 1.KD1206PHB1 (2).F.GN.pdf2.KD1206PHB1 (2).F.GN.pdf |
| Width | 15.00mm | Weight | 0.092 lb (41.73g) |
| Voltage Range | 6 ~ 13.8VDC | Voltage - Rated | 12VDC |
| Termination | 3 Wire Leads | Static Pressure | 0.180 in H2O (44.8 Pa) |
| Size / Dimension | Square - 60mm L x 60mm H | Series | KD |
| RPM | 4300 RPM | Power (Watts) | 1.90W |
| Other Names | 259-1336 K1260PHB14-FGRG KD1206PHB1.(2).F.GN KD1206PHB1.(2)F.GN KD1206PHB12FGN |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 37.0 dB(A) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Polybutylene Terephthalate (PBT) | Material - Blade | Polybutylene Terephthalate (PBT) |
| Lifetime @ Temp. | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Features | Speed Sensor (Tach) |
| Fan Type | Tubeaxial | Current Rating | 0.150A |
| Bearing Type | Ball | Approvals | CE, CUR, TUV, UL |
| Air Flow | 21.0 CFM (0.588m³/min) |
