Sunon

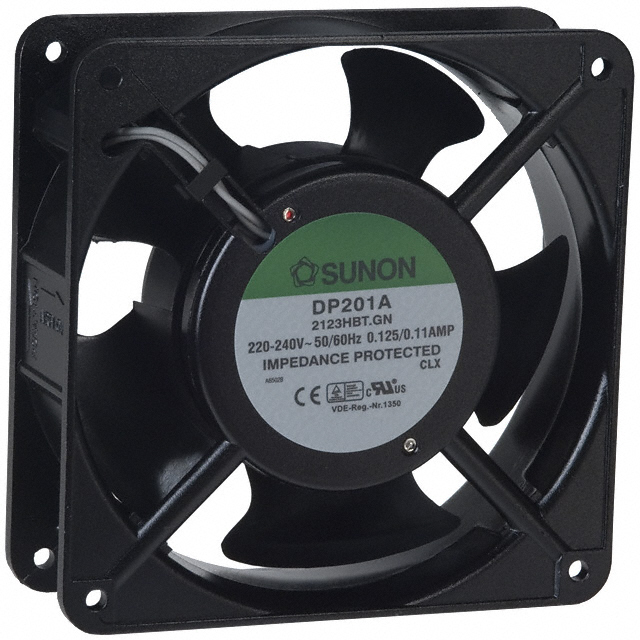

| Part Number | DP201A-2123HBT.GN | Manufacturer | Sunon |
|---|---|---|---|
| Description | FAN AXIAL 120X38MM 220/240VAC | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7806 pcs | Data sheet | 1.DP201A-2123HBT.GN.pdf2.DP201A-2123HBT.GN.pdf3.DP201A-2123HBT.GN.pdf |
| Width | 38.00mm | Weight | 1.2 lbs (544.3g) |
| Voltage Range | 185 ~ 245VAC | Voltage - Rated | 220 ~ 240VAC |
| Termination | 2 Terminals | Static Pressure | 0.320 in H2O (79.7 Pa) |
| Size / Dimension | Square - 120mm L x 120mm H | Series | DP |
| RPM | 3050 RPM | Power (Watts) | 19.00W |
| Other Names | 259-1434 DP201A 2123HBT.GN DP201A2123HBT.GN DP201A2123HBTGN |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 50.0 dB(A) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Aluminum | Material - Blade | Polybutylene Terephthalate (PBT) |
| Manufacturer Standard Lead Time | 14 Weeks | Lifetime @ Temp. | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | - | Fan Type | Tubeaxial |
| Current Rating | 0.110A | Bearing Type | Ball |
| Approvals | CE, CUR, TUV, UL | Air Flow | 107.0 CFM (3.00m³/min) |
