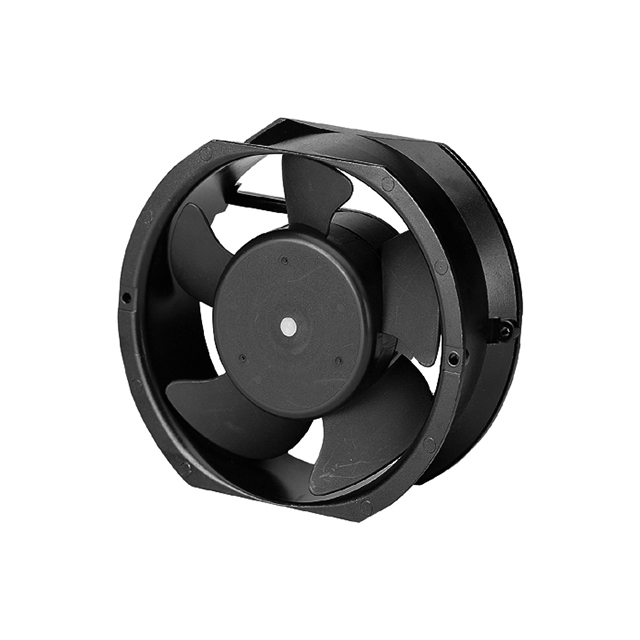

Sunon
| Part Number | A2175-HBL.TC.GN | Manufacturer | Sunon |
|---|---|---|---|
| Description | FAN AXIAL 171.5X51MM 220/240VAC | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1956 pcs | Data sheet | A2175-HBL.TC.GN.pdf |
| Width | 51.00mm | Weight | 2 lbs (907.2g) |
| Voltage Range | 150 ~ 250VAC | Voltage - Rated | 240VAC |
| Termination | 2 Wire Leads | Static Pressure | 0.690 in H2O (171.8 Pa) |
| Size / Dimension | Rectangular/Rounded - 171.5mm L x 151.5mm H | Series | A |
| RPM | 3200 RPM | Power (Watts) | 26.00W |
| Other Names | 259-1310 A2175-HBL TC.GN A2175-HBL-TC.GN A2175-HBLTC.GN A230H2AQB1LKGRL |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 58.0 dB(A) | Moisture Sensitivity Level (MSL) | Not Applicable |
| Material - Frame | Aluminum | Material - Blade | Polybutylene Terephthalate (PBT) |
| Manufacturer Standard Lead Time | 14 Weeks | Lifetime @ Temp. | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | - | Fan Type | Tubeaxial |
| Current Rating | 0.110A | Bearing Type | Ball |
| Approvals | CE, CUR, TUV, UL | Air Flow | 239.0 CFM (6.69m³/min) |
