CPFC74NP-PS01H2A30

Sumida Corporation

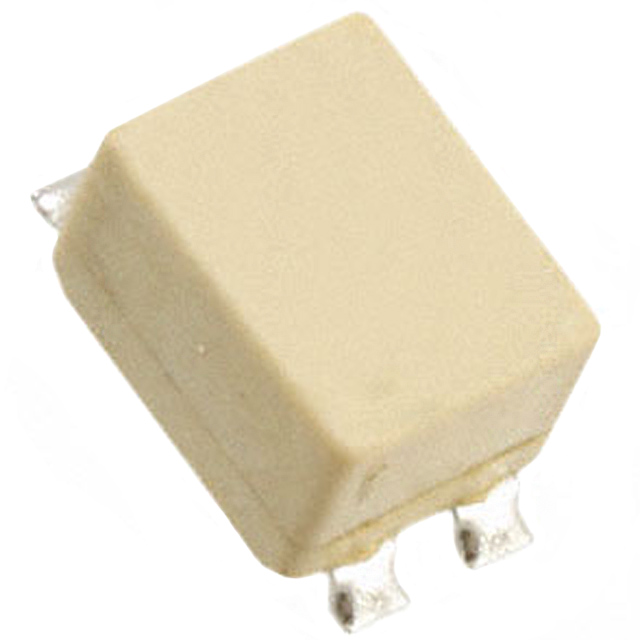

Image may be representation. See specifications for product details.

Product Overview

Part Number:	CPFC74NP-PS01H2A30
Manufacturer/Brand:	Sumida Corporation
Product description	COMMON MODE CHOKE 3A 2LN SMD
Datasheets:	CPFC74NP-PS01H2A30.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	85927 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 85927 pcs

Reference Price (In US Dollars)

1 pcs: $0.51

10 pcs: $0.473

100 pcs: $0.342

500 pcs: $0.262

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.51

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of CPFC74NP-PS01H2A30

Part Number	CPFC74NP-PS01H2A30	Manufacturer	Sumida Corporation
Description	COMMON MODE CHOKE 3A 2LN SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	85927 pcs	Data sheet	CPFC74NP-PS01H2A30.pdf
Voltage Rating - DC	-	Voltage Rating - AC	-
Size / Dimension	0.374" L x 0.224" W (9.50mm x 5.70mm)	Series	CPFC
Ratings	-	Packaging	Cut Tape (CT)
Package / Case	Vertical, 4 Gull Wing	Other Names	308-1561-1
Operating Temperature	-	Number of Lines	2
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height (Max)	0.200" (5.08mm)	Filter Type	Power Line
Features	-	Detailed Description	2 Line Common Mode Choke Surface Mount 3A DCR 60 mOhm (Typ)
DC Resistance (DCR) (Max)	60 mOhm (Typ)	Current Rating (Max)	3A
Approvals	-
