Sullins Connector Solutions

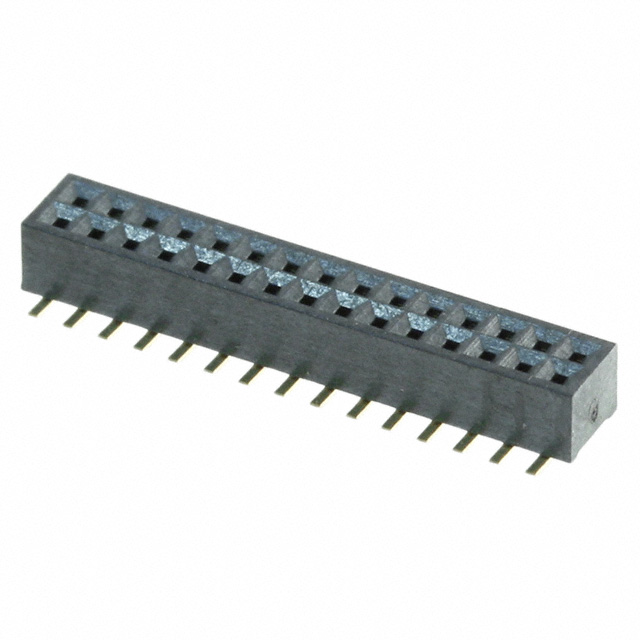

| Part Number | SFM210-LPSE-D15-SP-BK | Manufacturer | Sullins Connector Solutions |
|---|---|---|---|
| Description | CONN HDR FMAL 30POS 1MM GOLD SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 19388 pcs | Data sheet | 1.SFM210-LPSE-D15-SP-BK.pdf2.SFM210-LPSE-D15-SP-BK.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board | Series | SFM210 |
| Row Spacing - Mating | 0.039" (1.00mm) | Pitch - Mating | 0.039" (1.00mm) |
| Packaging | Tube | Other Names | S9391 SFM210LPSED15SPBK SS9391 |
| Operating Temperature | -40°C ~ 125°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 30 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 4 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.087" (2.20mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Board Guide | Fastening Type | Push-Pull |
| Detailed Description | 30 Position Header, Top or Bottom Entry Connector 0.039" (1.00mm) Surface Mount Gold | Current Rating | 1A |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | - |
| Contact Finish Thickness - Post | Flash | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Header, Top or Bottom Entry | Applications | - |
