Sullins Connector Solutions

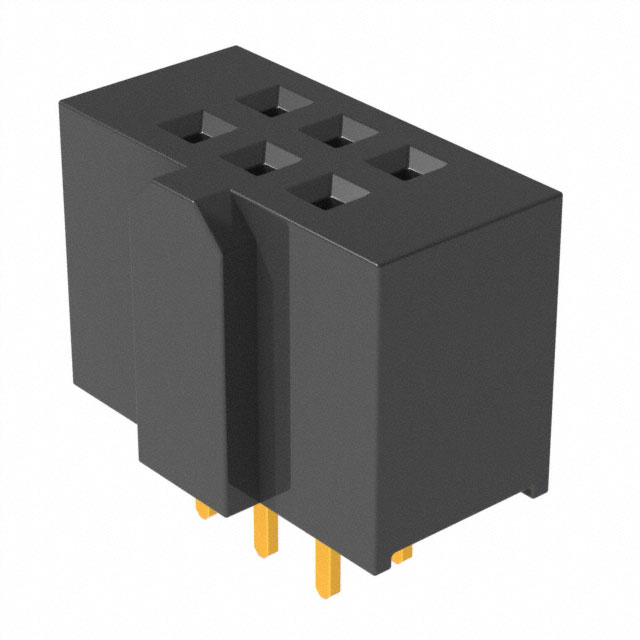

| Part Number | SFH11-NBPC-D03-ST-BK | Manufacturer | Sullins Connector Solutions |
|---|---|---|---|
| Description | CONN HEADER .100" 6POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 172773 pcs | Data sheet | SFH11-NBPC-D03-ST-BK.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board | Series | SFH11 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tray | Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 6 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 4 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.335" (8.51mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Polarizing Key |
| Fastening Type | Push-Pull | Detailed Description | 6 Position Header Connector 0.100" (2.54mm) Through Hole Gold |
| Current Rating | 3A | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.126" (3.20mm) | Contact Finish Thickness - Post | Flash |
| Contact Finish Thickness - Mating | Flash | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
