Sullins Connector Solutions

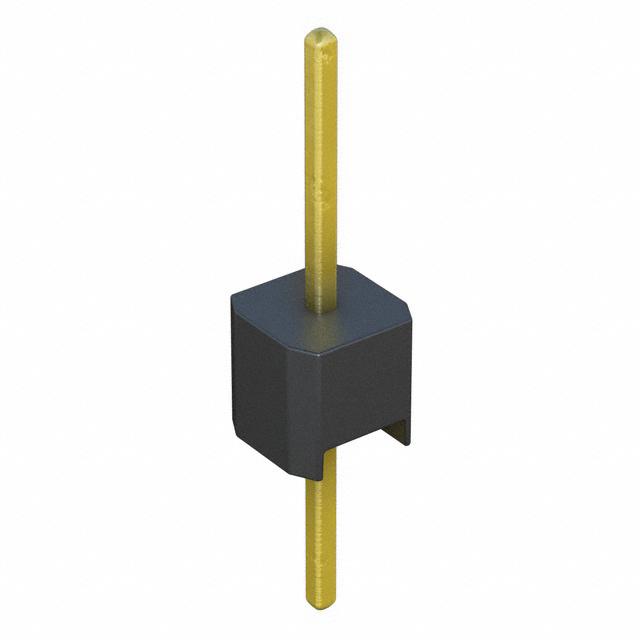

| Part Number | PRPN011PAEN | Manufacturer | Sullins Connector Solutions |
|---|---|---|---|
| Description | CONN HEADER 2MM SNGL STR 1POS | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 5918 pcs | Data sheet | PRPN011PAEN.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board or Cable | Shrouding | Unshrouded |
| Series | - | Row Spacing - Mating | - |
| Pitch - Mating | - | Packaging | Bulk |
| Overall Contact Length | 0.346" (8.80mm) | Other Names | S2105-01 |
| Operating Temperature | -40°C ~ 105°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 1 |
| Mounting Type | Through Hole | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Insulation Material | Polyester | Insulation Height | 0.079" (2.00mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 1 position | Current Rating | 1A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | 0.110" (2.79mm) |
| Contact Length - Mating | 0.157" (4.00mm) | Contact Finish Thickness - Post | Flash |
| Contact Finish Thickness - Mating | Flash | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
