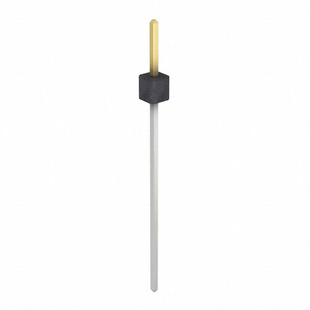

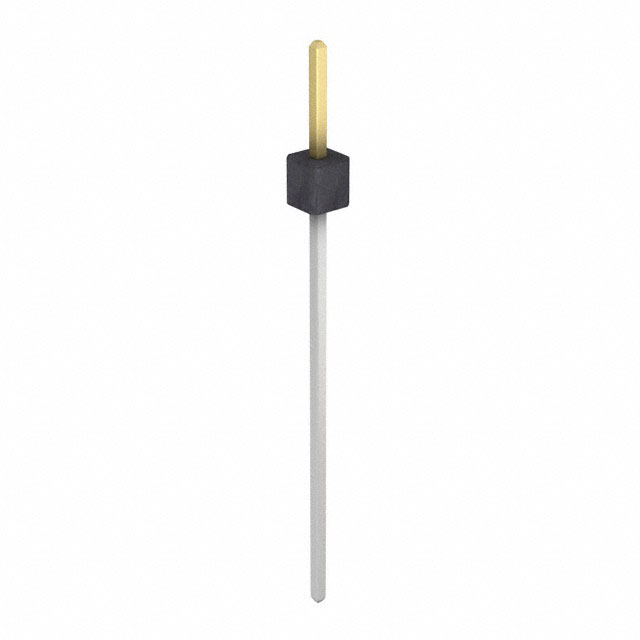

Sullins Connector Solutions
| Part Number | PBC01SAFN | Manufacturer | Sullins Connector Solutions |
|---|---|---|---|
| Description | CONN HEADER .100 SINGL STR 1POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 169054 pcs | Data sheet | 1.PBC01SAFN.pdf2.PBC01SAFN.pdf |
| Voltage - DC Spark Over (Nom) | Phosphor Bronze | Type Attributes | - |
| Termination | Solder | Style | Board to Board or Cable |
| Stacking Direction | Male Pin | Shrouding | - |
| Shield Termination | Square | Series | - |
| Row Spacing - Mating | Unshrouded | RoHS Status | Bulk |
| Ripple Current - Low Frequency | - | Pitch - Connector | - |
| Overall Contact Length | 0.620" (15.75mm) | Other Names | S1061E-01 |
| Operating Temperature | -65°C ~ 125°C | Number of Rows | 1 |
| Number of Positions | 1 | Number of Contacts | 100µin (2.54µm) |
| Mounting Type | Through Hole | Material Flammability Rating | UL94 V-0 |
| Material - Insulation | All | Manufacturer Part Number | PBC01SAFN |
| Length - Post (Mating) | - | Insulation Material | Tin |
| Insulation Height | 0.950" (24.13mm) | Features | - |
| Expanded Description | 1 Positions Header, Breakaway Connector Through Hole Gold | Description | CONN HEADER .100 SINGL STR 1POS |
| Current Rating | 3A | Current - Max/Contact | - |
| Contact Length - Post | 0.230" (5.84mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | Polybutylene Terephthalate (PBT) | Contact Finish Thickness - Mating | Gold |
| Contact Finish - Post | 10µin (0.25µm) | Contact Finish - Mating | 0.100" (2.54mm) |
| Connector Type | Header, Breakaway | Actual Diameter | Black |
