Sullins Connector Solutions
| Part Number | GBC20DAAN | Manufacturer | Sullins Connector Solutions |
|---|---|---|---|
| Description | CONN HDR VERT 40POS .100" GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 30063 pcs | Data sheet | 1.GBC20DAAN.pdf2.GBC20DAAN.pdf3.GBC20DAAN.pdf |
| Voltage - DC Spark Over (Nom) | Phosphor Bronze | Type Attributes | - |
| Termination | Solder | Style | Board to Board or Cable |
| Stacking Direction | Male Pin | Shrouding | 0.100" (2.54mm) |
| Shield Termination | Square | Series | - |
| Row Spacing - Mating | Unshrouded | RoHS Status | Bulk |
| Ripple Current - Low Frequency | - | Pitch - Connector | - |
| Overall Contact Length | 0.120" (3.05mm) | Operating Temperature | -65°C ~ 150°C |
| Number of Rows | 2 | Number of Positions | 40 |
| Number of Contacts | 100µin (2.54µm) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Material - Insulation | All | Manufacturer Part Number | GBC20DAAN |
| Length - Post (Mating) | - | Insulation Material | Tin |
| Insulation Height | 0.450" (11.43mm) | Features | - |

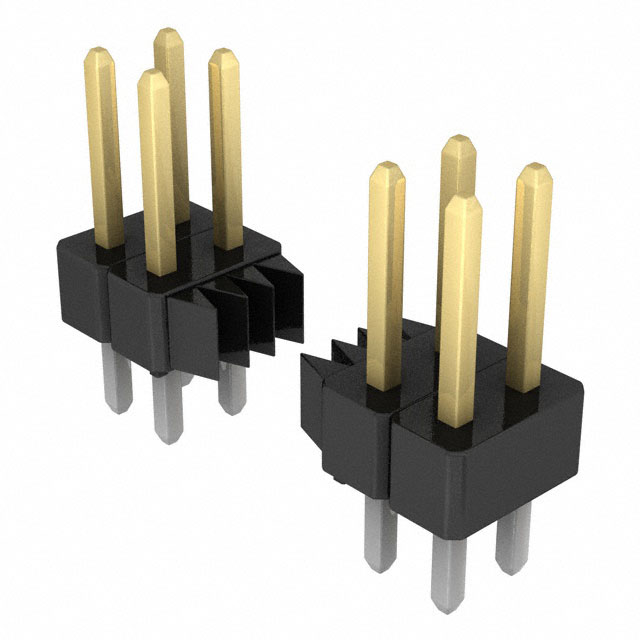

| Expanded Description | 40 Positions Header, Breakaway Connector 0.100" (2.54mm) Through Hole Gold | Description | CONN HDR VERT 40POS .100" GOLD |
| Current Rating | 3A | Current - Max/Contact | - |
| Contact Length - Post | 0.230" (5.84mm) | Contact Length - Mating | 0.100" (2.54mm) |
| Contact Finish Thickness - Post | Polyamide (PA9T), Nylon 9T | Contact Finish Thickness - Mating | Gold |
| Contact Finish - Post | 10µin (0.25µm) | Contact Finish - Mating | 0.100" (2.54mm) |
| Connector Type | Header, Breakaway | Actual Diameter | Black |
