SHV05-1A85-78D4K

Standex-Meder Electronics

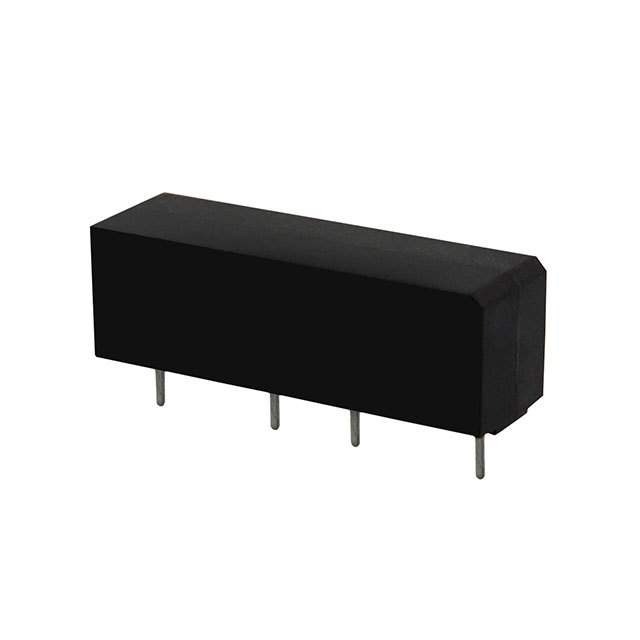

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SHV05-1A85-78D4K
Manufacturer/Brand:	Standex-Meder Electronics
Product description	RELAY REED SPST 1A 5V
Datasheets:	1.SHV05-1A85-78D4K.pdf 2.SHV05-1A85-78D4K.pdf 3.SHV05-1A85-78D4K.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	17222 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 17222 pcs

Reference Price (In US Dollars)

1 pcs: $3.136

10 pcs: $2.726

25 pcs: $2.453

50 pcs: $2.317

100 pcs: $2.18

250 pcs: $2.044

500 pcs: $1.942

1000 pcs: $1.874

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$3.136

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SHV05-1A85-78D4K

Part Number	SHV05-1A85-78D4K	Manufacturer	Standex-Meder Electronics
Description	RELAY REED SPST 1A 5V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	17222 pcs	Data sheet	1.SHV05-1A85-78D4K.pdf 2.SHV05-1A85-78D4K.pdf 3.SHV05-1A85-78D4K.pdf
Turn On Voltage (Max)	3.75 VDC	Turn Off Voltage (Min)	0.5 VDC
Termination Style	PC Pin	Switching Voltage	1000VAC, 1000VDC - Max
Series	SHV	Release Time	0.1ms
Packaging	Tube	Other Names	3305185778 374-1405-5 SHV05-1A85-78D4K-ND
Operating Temperature	-40°C ~ 100°C	Operate Time	1.1ms
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	14 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Diode	Contact Rating (Current)	1A
Contact Material	-	Contact Form	SPST-NO (1 Form A)
Coil Voltage	5VDC	Coil Type	Non Latching
Coil Resistance	140 Ohms	Coil Power	179 mW
Coil Current	35.7mA
