Souriau Connection Technology

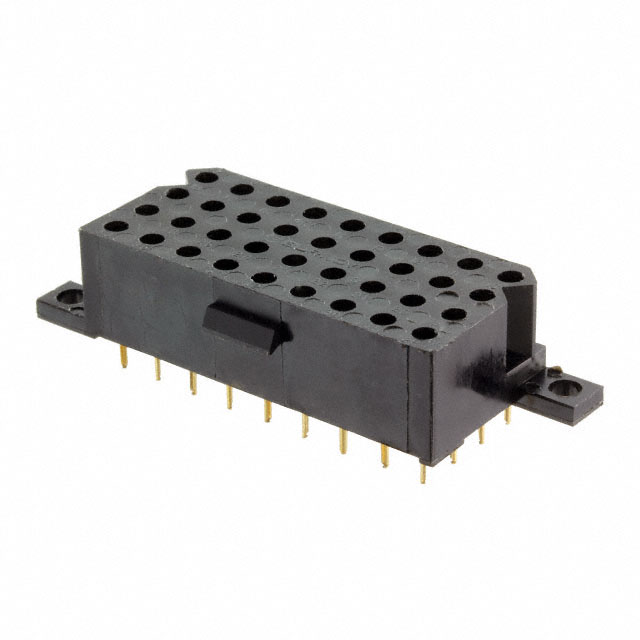

| Part Number | SMS36RE3D70 | Manufacturer | Souriau Connection Technology |
|---|---|---|---|
| Description | BOARDMOUNT QIKMATE SOCKE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8325 pcs | Data sheet | |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board or Cable | Series | SMS |
| Row Spacing - Mating | 0.200" (5.08mm) | Pitch - Mating | 0.200" (5.08mm) |
| Packaging | Bulk | Other Names | SMS36RE3D70-ND SOU2186 |
| Operating Temperature | -55°C ~ 105°C | Number of Rows | 4 |
| Number of Positions Loaded | All | Number of Positions | 36 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Thermoplastic, Glass Filled | Insulation Height | 0.528" (13.40mm) |
| Insulation Color | Black | Ingress Protection | IP40 |
| Features | Mounting Flange | Fastening Type | Locking Ramp |
| Detailed Description | 36 Position Receptacle Connector 0.200" (5.08mm) Through Hole Gold | Current Rating | 5A |
| Contact Type | Female Socket | Contact Shape | Circular |
| Contact Material | Copper Alloy | Contact Length - Post | 0.173" (4.40mm) |
| Contact Finish Thickness - Post | Flash | Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | - |
