PC724V0NIPXF

Sharp Microelectronics

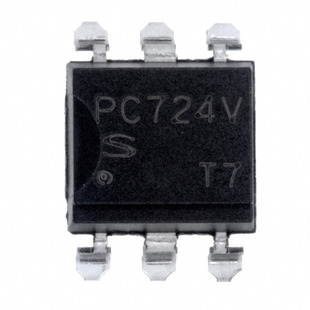

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PC724V0NIPXF
Manufacturer/Brand:	Sharp Microelectronics
Product description	OPTOISOLATR 5KV TRANSISTOR 6-SMD
Datasheets:	PC724V0NIPXF.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	5735 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 5735 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PC724V0NIPXF

Part Number	PC724V0NIPXF	Manufacturer	Sharp Microelectronics
Description	OPTOISOLATR 5KV TRANSISTOR 6-SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5735 pcs	Data sheet	PC724V0NIPXF.pdf
Voltage - Output (Max)	35V	Voltage - Isolation	5000Vrms
Voltage - Forward (Vf) (Typ)	1.4V	Vce Saturation (Max)	200mV
Turn On / Turn Off Time (Typ)	-	Supplier Device Package	6-SMD
Series	-	Rise / Fall Time (Typ)	4µs, 3µs
Packaging	Tape & Reel (TR)	Package / Case	6-SMD, Gull Wing
Output Type	Transistor	Other Names	425-2158-2
Operating Temperature	-25°C ~ 100°C	Number of Channels	1
Mounting Type	Surface Mount	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Type	DC	Detailed Description	Optoisolator Transistor Output 5000Vrms 1 Channel 6-SMD
Current Transfer Ratio (Min)	20% @ 100mA	Current Transfer Ratio (Max)	80% @ 100mA
Current - Output / Channel	80mA	Current - DC Forward (If) (Max)	150mA
