PC4SD21NXZCF

Sharp Microelectronics

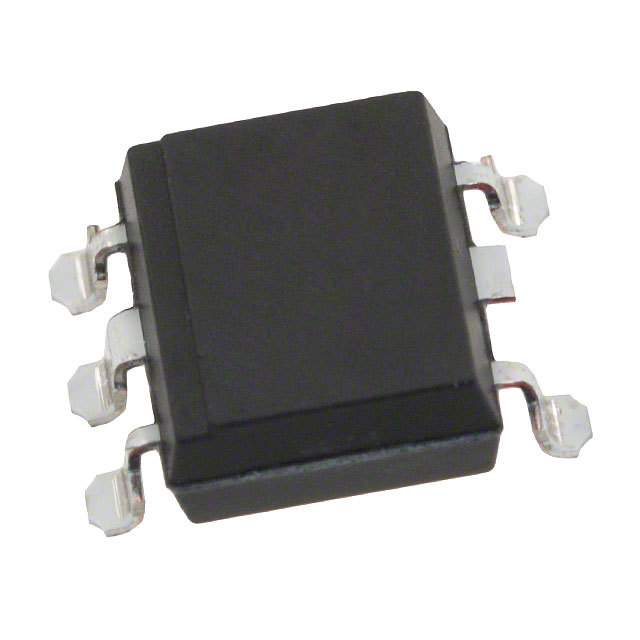

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PC4SD21NXZCF
Manufacturer/Brand:	Sharp Microelectronics
Product description	OPTOISOLATOR 5KV TRIAC 6SMD
Datasheets:	PC4SD21NXZCF.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	5924 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 5924 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PC4SD21NXZCF

Part Number	PC4SD21NXZCF	Manufacturer	Sharp Microelectronics
Description	OPTOISOLATOR 5KV TRIAC 6SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5924 pcs	Data sheet	PC4SD21NXZCF.pdf
Zero Crossing Circuit	Yes	Voltage - Off State	800V
Voltage - Isolation	5000Vrms	Voltage - Forward (Vf) (Typ)	1.2V
Turn On Time	50µs (Max)	Supplier Device Package	6-SMD
Static dV/dt (Min)	500V/µs	Series	-
Packaging	Tube	Package / Case	6-SMD
Output Type	Triac	Operating Temperature	-30°C ~ 100°C
Number of Channels	1	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Detailed Description	Optoisolator Triac Output 5000Vrms 1 Channel 6-SMD	Current - On State (It (RMS)) (Max)	100mA
Current - LED Trigger (Ift) (Max)	5mA	Current - Hold (Ih)	3.5mA
Current - DC Forward (If) (Max)	50mA	Approvals	CSA, UR
