PC3SD11NTZC

Sharp Microelectronics

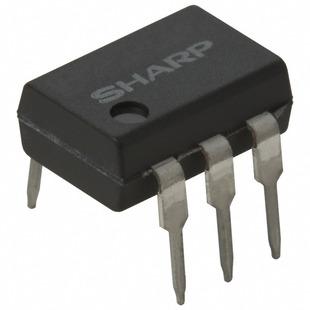

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PC3SD11NTZC
Manufacturer/Brand:	Sharp Microelectronics
Product description	OPTOISOLATOR 5KV TRIAC 6DIP
Datasheets:	PC3SD11NTZC.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	5807 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 5807 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PC3SD11NTZC

Part Number	PC3SD11NTZC	Manufacturer	Sharp Microelectronics
Description	OPTOISOLATOR 5KV TRIAC 6DIP	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	5807 pcs	Data sheet	PC3SD11NTZC.pdf
Zero Crossing Circuit	No	Voltage - Off State	600V
Voltage - Isolation	5000Vrms	Voltage - Forward (Vf) (Typ)	1.2V
Turn On Time	100µs (Max)	Supplier Device Package	6-DIP
Static dV/dt (Min)	1kV/µs	Series	-
Packaging	Tube	Package / Case	6-DIP (0.300", 7.62mm), 5 Leads
Output Type	Triac	Other Names	425-1363-5
Operating Temperature	-30°C ~ 100°C	Number of Channels	1
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant	Detailed Description	Optoisolator Triac Output 5000Vrms 1 Channel 6-DIP
Current - On State (It (RMS)) (Max)	100mA	Current - LED Trigger (Ift) (Max)	5mA
Current - Hold (Ih)	3.5mA	Current - DC Forward (If) (Max)	50mA
Approvals	CSA, UR
