RN216-0.8-02-27M

Schaffner EMC, Inc.

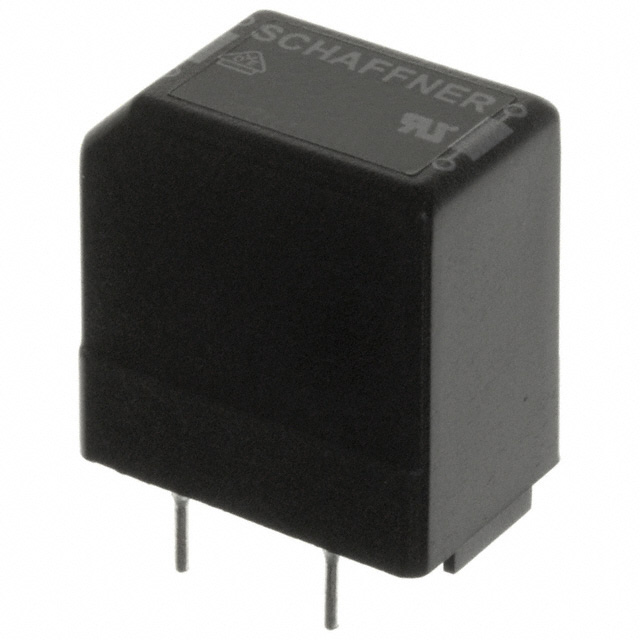

Image may be representation. See specifications for product details.

Product Overview

Part Number:	RN216-0.8-02-27M
Manufacturer/Brand:	Schaffner EMC, Inc.
Product description	CMC 27MH 800MA 2LN TH
Datasheets:	RN216-0.8-02-27M.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	67190 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 67190 pcs

Reference Price (In US Dollars)

1 pcs: $0.762

10 pcs: $0.705

100 pcs: $0.493

500 pcs: $0.399

1000 pcs: $0.364

2500 pcs: $0.352

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.762

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of RN216-0.8-02-27M

Part Number	RN216-0.8-02-27M	Manufacturer	Schaffner EMC, Inc.
Description	CMC 27MH 800MA 2LN TH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	67190 pcs	Data sheet	RN216-0.8-02-27M.pdf
Voltage Rating - DC	-	Voltage Rating - AC	300V
Size / Dimension	0.906" L x 0.610" W (23.00mm x 15.50mm)	Series	RN
Ratings	-	Packaging	Tray
Package / Case	Vertical, 4 PC Pin	Other Names	815802 817-2192
Operating Temperature	-40°C ~ 100°C	Number of Lines	2
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance @ Frequency	27mH @ 10kHz	Height (Max)	0.996" (25.30mm)
Filter Type	Power Line	Features	-
Detailed Description	27mH @ 10kHz 2 Line Common Mode Choke Through Hole 800mA DCR 370 mOhm (Typ)	DC Resistance (DCR) (Max)	370 mOhm (Typ)
Current Rating (Max)	800mA	Approvals	ENEC, UR, VDE
