RN152-10-02

Schaffner EMC, Inc.Schaffner EMC, Inc.

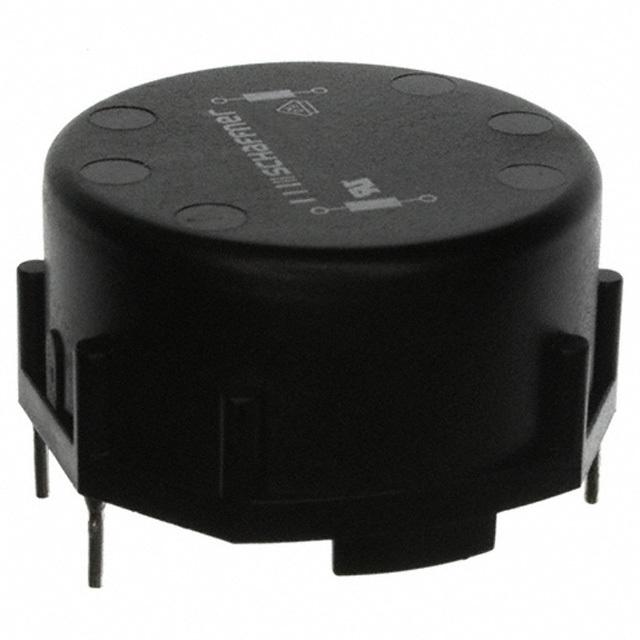

RN152-10-02 Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: RN152-10-02
Manufacturer/Brand: Schaffner EMC, Inc.
Product description CMC 1.8MH 10A 2LN TH
Datasheets: RN152-10-02.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 4296 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 4296 pcs
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of RN152-10-02

Part Number RN152-10-02 Manufacturer Schaffner EMC, Inc.
Description CMC 1.8MH 10A 2LN TH Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 4296 pcs Data sheet RN152-10-02.pdf
Voltage Rating - DC - Voltage Rating - AC 250V
Size / Dimension 1.693" L x 1.646" W (43.00mm x 41.80mm) Series RN
Ratings - Packaging Tube
Package / Case Horizontal, 4 PC Pin Other Names 294-056
800877
817-1556
RN 152-10 -02
RN1521002
Operating Temperature -40°C ~ 125°C Number of Lines 2
Mounting Type Through Hole Lead Free Status / RoHS Status Lead free / RoHS Compliant
Inductance @ Frequency 1.8mH @ 10kHz Height (Max) 0.996" (25.30mm)
Filter Type Power Line Features -
Detailed Description 1.8mH @ 10kHz 2 Line Common Mode Choke Through Hole 10A (Typ) DCR 14 mOhm (Typ) DC Resistance (DCR) (Max) 14 mOhm (Typ)
Current Rating (Max) 10A (Typ) Approvals UR, VDE
