EV28-1.0-02-36M

Schaffner EMC, Inc.

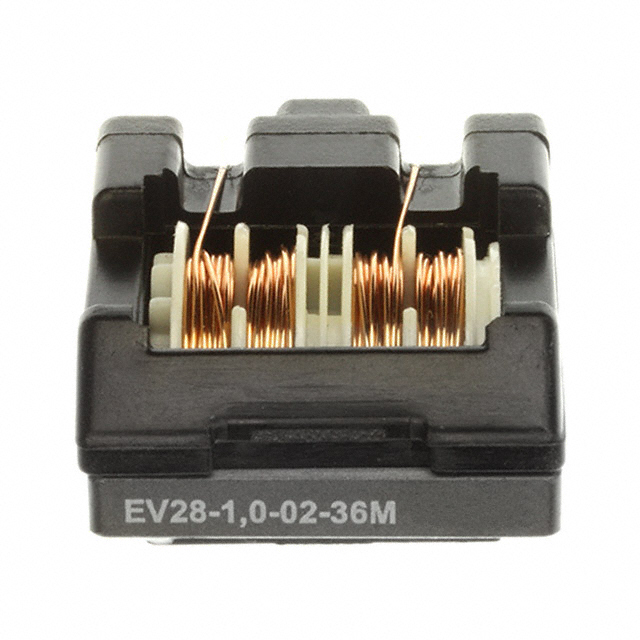

Image may be representation. See specifications for product details.

Product Overview

Part Number:	EV28-1.0-02-36M
Manufacturer/Brand:	Schaffner EMC, Inc.
Product description	COMMON MODE CHOKE 36MH 1A 2LN TH
Datasheets:	EV28-1.0-02-36M.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	55492 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 55492 pcs

Reference Price (In US Dollars)

1 pcs: $1.093

10 pcs: $1.001

100 pcs: $0.655

500 pcs: $0.582

1000 pcs: $0.546

2500 pcs: $0.538

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.093

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of EV28-1.0-02-36M

Part Number	EV28-1.0-02-36M	Manufacturer	Schaffner EMC, Inc.
Description	COMMON MODE CHOKE 36MH 1A 2LN TH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	55492 pcs	Data sheet	EV28-1.0-02-36M.pdf
Voltage Rating - DC	-	Voltage Rating - AC	250V
Size / Dimension	1.150" L x 0.827" W (29.20mm x 21.00mm)	Series	EV
Ratings	-	Packaging	Tube
Package / Case	Vertical, 4 PC Pin	Other Names	295-508 801061 817-1045 EV28-1,0-02-36M EV28100236M
Operating Temperature	-25°C ~ 100°C	Number of Lines	2
Mounting Type	Through Hole	Manufacturer Standard Lead Time	10 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance @ Frequency	36mH @ 400Hz
Height (Max)	1.406" (35.70mm)	Filter Type	Power Line
Features	-	Detailed Description	36mH @ 400Hz 2 Line Common Mode Choke Through Hole 1A DCR 591 mOhm (Typ)
DC Resistance (DCR) (Max)	591 mOhm (Typ)	Current Rating (Max)	1A
Approvals	-
