EH35-4.0-02-5M0

Schaffner EMC, Inc.

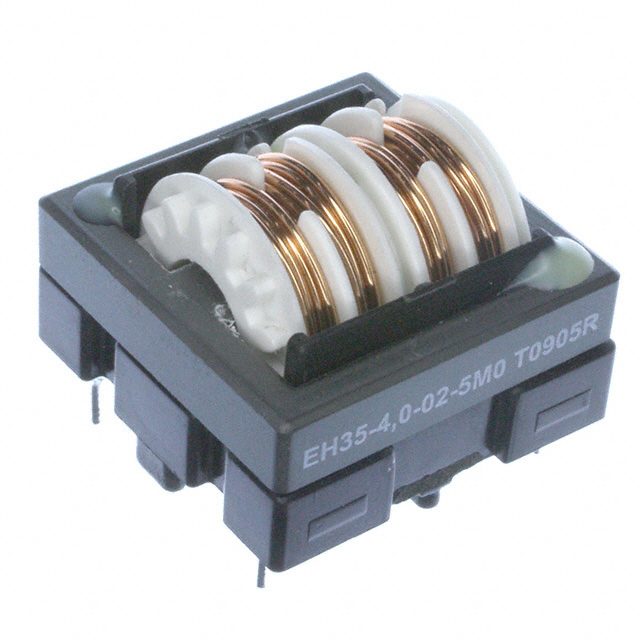

Image may be representation. See specifications for product details.

Product Overview

Part Number:	EH35-4.0-02-5M0
Manufacturer/Brand:	Schaffner EMC, Inc.
Product description	COMMON MODE CHOKE 5MH 4A 2LN TH
Datasheets:	EH35-4.0-02-5M0.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	27287 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 27287 pcs

Reference Price (In US Dollars)

1 pcs: $2.218

10 pcs: $2.016

250 pcs: $1.29

500 pcs: $1.25

1000 pcs: $1.192

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.218

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of EH35-4.0-02-5M0

Part Number	EH35-4.0-02-5M0	Manufacturer	Schaffner EMC, Inc.
Description	COMMON MODE CHOKE 5MH 4A 2LN TH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	27287 pcs	Data sheet	EH35-4.0-02-5M0.pdf
Voltage Rating - DC	-	Voltage Rating - AC	250V
Size / Dimension	1.417" L x 1.417" W (36.00mm x 36.00mm)	Series	EH
Ratings	-	Packaging	Tube
Package / Case	Horizontal, 4 PC Pin	Other Names	295-542 801095 817-1028 EH35-4,0-02-5M0 EH3540025M0
Operating Temperature	-25°C ~ 100°C	Number of Lines	2
Mounting Type	Through Hole	Manufacturer Standard Lead Time	10 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance @ Frequency	5mH @ 400Hz
Height (Max)	1.130" (28.70mm)	Filter Type	Power Line
Features	-	Detailed Description	5mH @ 400Hz 2 Line Common Mode Choke Through Hole 4A DCR 53 mOhm (Typ)
DC Resistance (DCR) (Max)	53 mOhm (Typ)	Current Rating (Max)	4A
Approvals	-
