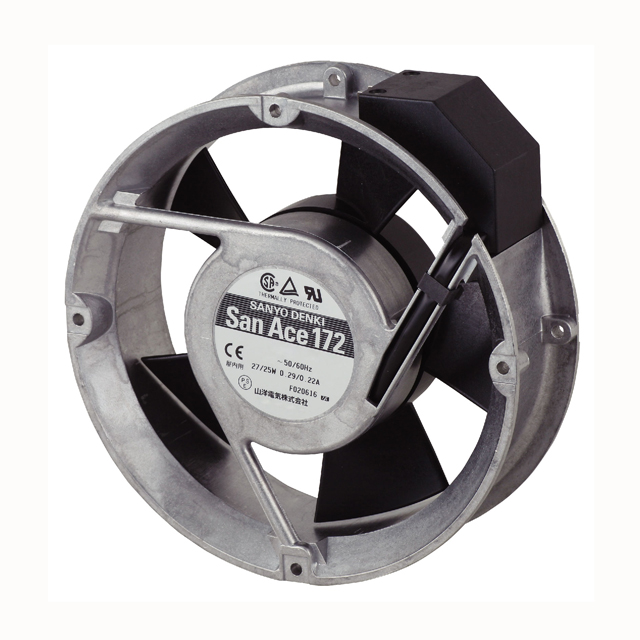

Sanyo Denki
| Part Number | 109S301 | Manufacturer | Sanyo Denki |
|---|---|---|---|
| Description | FAN 172X51MM 100VAC SIDE CUT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2124 pcs | Data sheet | 1.109S301.pdf2.109S301.pdf |
| Width | 51.00mm | Weight | 2.3 lbs (1kg) |
| Voltage Range | - | Voltage - Rated | 100VAC |
| Termination | 2 Terminals | Static Pressure | 0.787 in H2O (196.0 Pa) |
| Size / Dimension | Rectangular/Rounded - 172mm L x 150mm H | Series | San Ace 172 |
| RPM | 3500 RPM | Power (Watts) | 25.00W |
| Other Names | 1032-107407 109S301-ND 1688-2085 |
Operating Temperature | -22 ~ 140°F (-30 ~ 60°C) |
| Noise | 56.0 dB(A) | Moisture Sensitivity Level (MSL) | Not Applicable |
| Material - Frame | Aluminum | Material - Blade | Plastic |
| Manufacturer Standard Lead Time | 20 Weeks | Lifetime @ Temp. | 25000 Hrs @ 60°C |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | - | Fan Type | Tubeaxial |
| Current Rating | 0.640A | Bearing Type | Ball |
| Approvals | CE, CSA, PSE, TUV, UL | Air Flow | 226.1 CFM (6.33m³/min) |
