SX68003MH

Sanken Electric Co., Ltd.

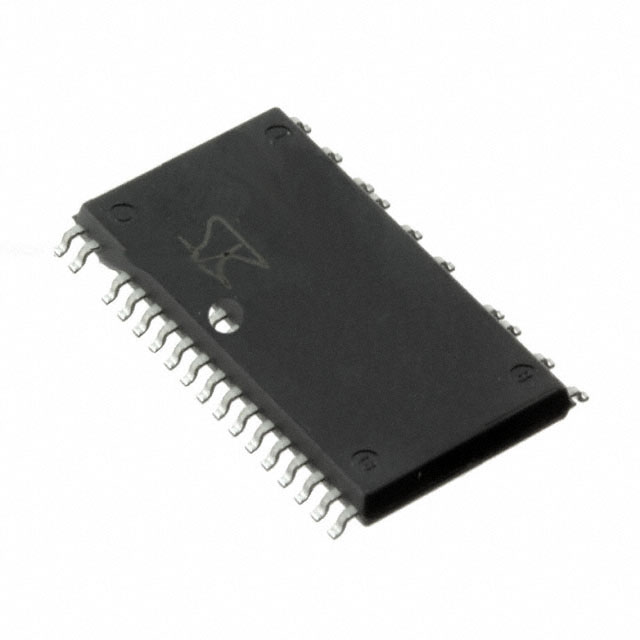

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SX68003MH
Manufacturer/Brand:	Sanken Electric Co., Ltd.
Product description	IC MOTOR DRIVER PAR 27SOP
Datasheets:	SX68003MH.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	23164 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 23164 pcs

Reference Price (In US Dollars)

1000 pcs: $1.685

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.685

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SX68003MH

Part Number	SX68003MH	Manufacturer	Sanken Electric Co., Ltd.
Description	IC MOTOR DRIVER PAR 27SOP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	23164 pcs	Data sheet	SX68003MH.pdf
Voltage - Supply	13.5 V ~ 16.5 V	Voltage - Load	400V (Max)
Technology	Power MOSFET	Supplier Device Package	27-SOP
Step Resolution	-	Series	-
Packaging	Tape & Reel (TR)	Package / Case	36-SOP (0.449", 11.40mm Width), 24 Leads, Exposed Pad
Output Configuration	Half Bridge (3)	Other Names	SX68003MH DK SX68003MH-ND SX68003MHTR SX68003MX SX68003MX-ND
Operating Temperature	-20°C ~ 150°C (TJ)	Mounting Type	Surface Mount
Motor Type - Stepper	-	Motor Type - AC, DC	Brushless DC (BLDC)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	24 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Interface	Parallel
Function	Driver - Fully Integrated, Control and Power Stage	Detailed Description	Motor Driver Power MOSFET Parallel 27-SOP
Current - Output	2.5A	Applications	Appliance
