2SC5100

Sanken Electric Co., Ltd.

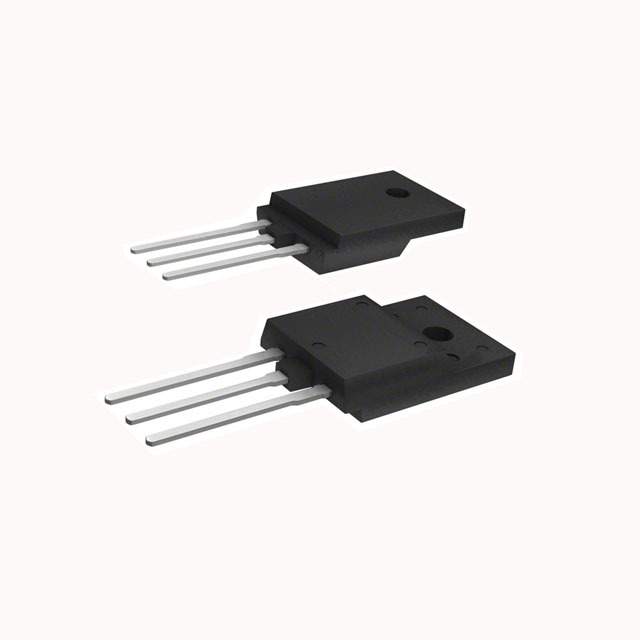

Image may be representation. See specifications for product details.

Product Overview

Part Number:	2SC5100
Manufacturer/Brand:	Sanken Electric Co., Ltd.
Product description	TRANS NPN 120V 8A TO3PF
Datasheets:	2SC5100.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	69681 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 69681 pcs

Reference Price (In US Dollars)

1 pcs: $1.007

10 pcs: $0.909

25 pcs: $0.811

100 pcs: $0.73

250 pcs: $0.649

500 pcs: $0.568

1000 pcs: $0.471

2500 pcs: $0.438

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.007

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 2SC5100

Part Number	2SC5100	Manufacturer	Sanken Electric Co., Ltd.
Description	TRANS NPN 120V 8A TO3PF	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	69681 pcs	Data sheet	2SC5100.pdf
Voltage - Collector Emitter Breakdown (Max)	120V	Vce Saturation (Max) @ Ib, Ic	500mV @ 300mA, 3A
Transistor Type	NPN	Supplier Device Package	TO-3P
Series	-	Power - Max	75W
Packaging	Bulk	Package / Case	TO-3P-3 Full Pack
Other Names	2SC5100 DK	Operating Temperature	150°C (TJ)
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	36 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Frequency - Transition	20MHz	Detailed Description	Bipolar (BJT) Transistor NPN 120V 8A 20MHz 75W Through Hole TO-3P
DC Current Gain (hFE) (Min) @ Ic, Vce	50 @ 3A, 4V	Current - Collector Cutoff (Max)	10µA (ICBO)
Current - Collector (Ic) (Max)	8A
