Samtec, Inc.

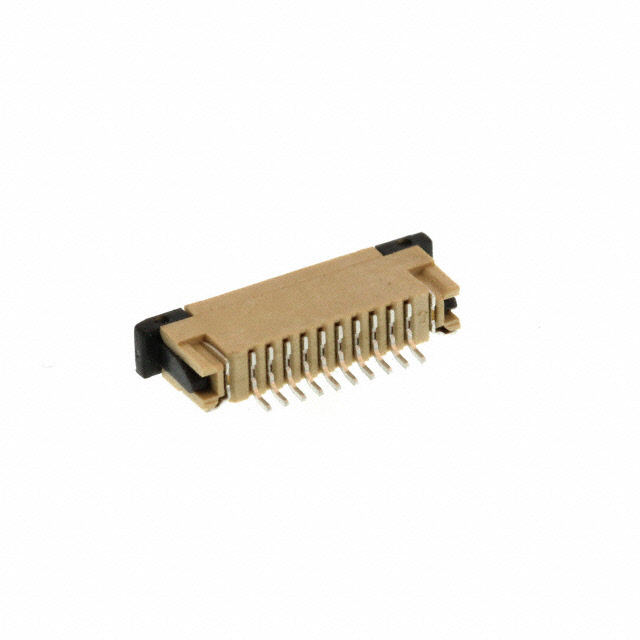

| Part Number | ZF1-10-02-T-WT | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN FFC TOP 10POS 1.00MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 164483 pcs | Data sheet | 1.ZF1-10-02-T-WT.pdf2.ZF1-10-02-T-WT.pdf3.ZF1-10-02-T-WT.pdf |
| Voltage Rating | - | Termination | Solder |
| Series | ZF1 | Pitch | 0.039" (1.00mm) |
| Packaging | Tube | Other Names | SAM13049 ZF1-10-02-T-WT-ND |
| Operating Temperature | -55°C ~ 105°C | Number of Positions | 10 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | - | Material Flammability Rating | UL94 V-2 |
| Manufacturer Standard Lead Time | 3 Weeks | Locking Feature | Slide Lock |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Liquid Crystal Polymer (LCP) |
| Housing Color | Natural | Height Above Board | 0.118" (3.00mm) |
| Flat Flex Type | FFC | Features | Solder Retention, Zero Insertion Force (ZIF) |
| FFC, FCB Thickness | 0.30mm | Detailed Description | 10 Position FFC Connector Contacts, Top 0.039" (1.00mm) Surface Mount, Right Angle |
| Current Rating | 1.9A per Contact | Contact Material | Phosphor Bronze |
| Contact Finish Thickness | - | Contact Finish | Tin |
| Connector/Contact Type | Contacts, Top | Cable End Type | Straight |
| Actuator Material | Polyphenylene Sulfide (PPS) | Actuator Color | Black |
