TSM-102-01-L-SH

Samtec, Inc.

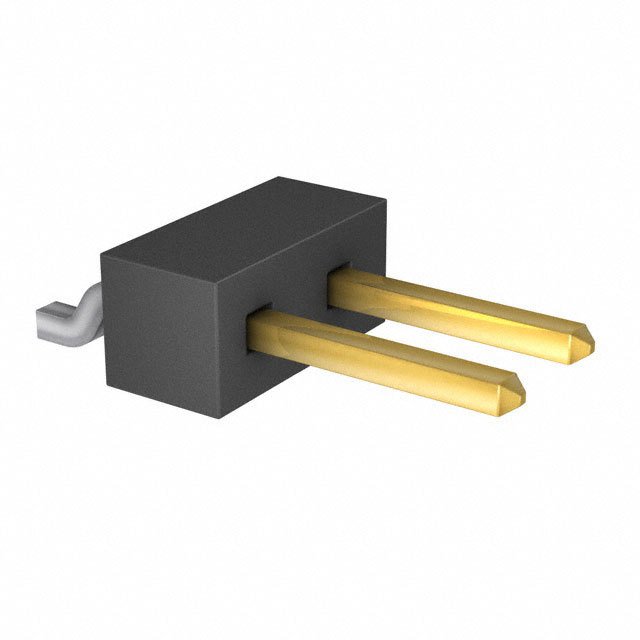

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TSM-102-01-L-SH
Manufacturer/Brand:	Samtec, Inc.
Product description	CONN HEADER 2POS .100" SNGL SMD
Datasheets:	1.TSM-102-01-L-SH.pdf 2.TSM-102-01-L-SH.pdf 3.TSM-102-01-L-SH.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	332715 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 332715 pcs

Reference Price (In US Dollars)

1 pcs: $0.151

10 pcs: $0.144

100 pcs: $0.101

500 pcs: $0.087

1000 pcs: $0.072

5000 pcs: $0.062

10000 pcs: $0.058

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.151

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TSM-102-01-L-SH

Part Number	TSM-102-01-L-SH	Manufacturer	Samtec, Inc.
Description	CONN HEADER 2POS .100" SNGL SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	332715 pcs	Data sheet	1.TSM-102-01-L-SH.pdf 2.TSM-102-01-L-SH.pdf 3.TSM-102-01-L-SH.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Unshrouded
Series	TSM	Row Spacing - Mating	-
Pitch - Mating	0.100" (2.54mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	SAM10781 TSM-102-01-L-SH-ND
Operating Temperature	-55°C ~ 125°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	2
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	4 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Liquid Crystal Polymer (LCP)	Insulation Height	0.120" (3.05mm)
Insulation Color	Black	Ingress Protection	-
Features	-	Fastening Type	Push-Pull
Detailed Description	Connector Header Surface Mount, Right Angle 2 position 0.100" (2.54mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Phosphor Bronze	Contact Length - Post	-
Contact Length - Mating	0.230" (5.84mm)	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	10.0µin (0.25µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	-
