Samtec, Inc.

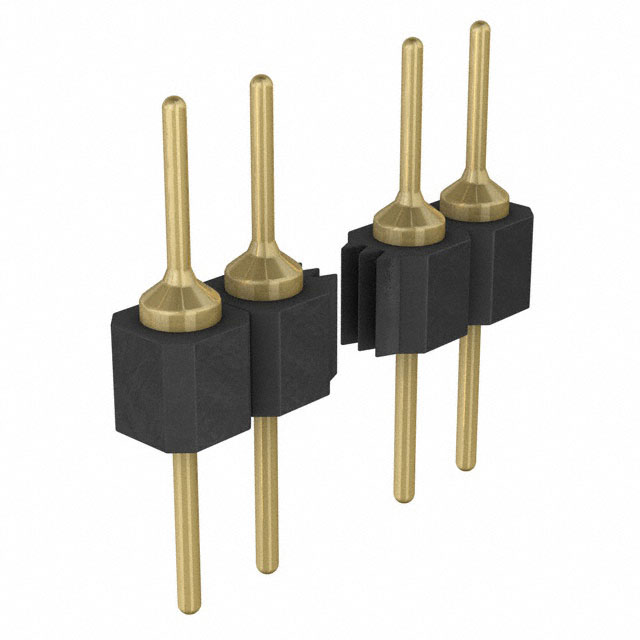

| Part Number | TS-114-G-G-1 | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN HEADER 14POS .100 SNGL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 18373 pcs | Data sheet | 1.TS-114-G-G-1.pdf2.TS-114-G-G-1.pdf3.TS-114-G-G-1.pdf4.TS-114-G-G-1.pdf5.TS-114-G-G-1.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board | Shrouding | Unshrouded |
| Series | TS | Row Spacing - Mating | - |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tube |
| Overall Contact Length | 0.508" (12.90mm) | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 14 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyester, Glass Filled | Insulation Height | 0.100" (2.54mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 14 position 0.100" (2.54mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Circular |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.187" (4.75mm) |
| Contact Length - Mating | 0.176" (4.47mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 20.0µin (0.51µm) | Contact Finish - Post | - |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
