TOLC-120-22-L-Q-A

Samtec, Inc.

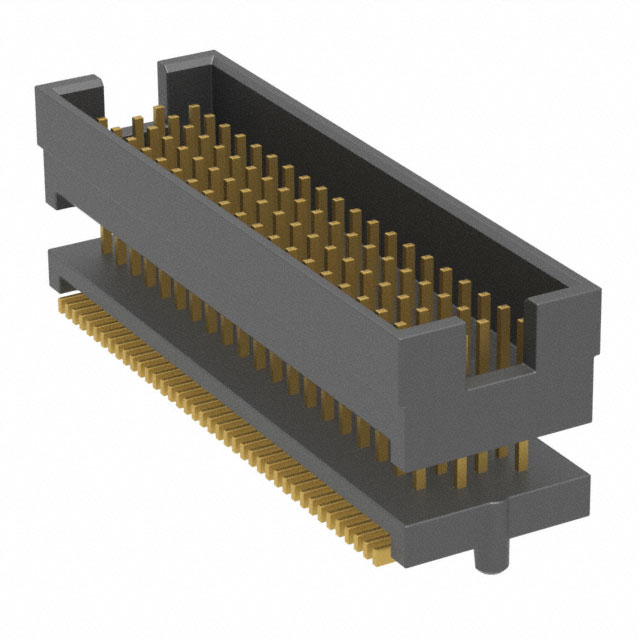

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TOLC-120-22-L-Q-A
Manufacturer/Brand:	Samtec, Inc.
Product description	QUAD ROW SMT TERMINAL
Datasheets:	1.TOLC-120-22-L-Q-A.pdf 2.TOLC-120-22-L-Q-A.pdf 3.TOLC-120-22-L-Q-A.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	10672 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 10672 pcs

Reference Price (In US Dollars)

1 pcs: $4.825

10 pcs: $4.388

100 pcs: $3.73

500 pcs: $3.181

1000 pcs: $2.918

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$4.825

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TOLC-120-22-L-Q-A

Part Number	TOLC-120-22-L-Q-A	Manufacturer	Samtec, Inc.
Description	QUAD ROW SMT TERMINAL	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	10672 pcs	Data sheet	1.TOLC-120-22-L-Q-A.pdf 2.TOLC-120-22-L-Q-A.pdf 3.TOLC-120-22-L-Q-A.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board	Shrouding	Shrouded - 4 Wall
Series	FOURRAY™ TOLC	Row Spacing - Mating	0.050" (1.27mm)
Pitch - Mating	0.050" (1.27mm)	Packaging	Tube
Overall Contact Length	-	Other Names	SAM12994 TOLC-120-22-L-Q-A-ND
Operating Temperature	-55°C ~ 125°C	Number of Rows	4
Number of Positions Loaded	All	Number of Positions	80
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	10mm
Manufacturer Standard Lead Time	3 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Liquid Crystal Polymer (LCP)	Insulation Height	0.364" (9.25mm)
Insulation Color	Black	Ingress Protection	-
Features	Board Guide	Fastening Type	Push-Pull
Detailed Description	Connector Header Surface Mount 80 position 0.050" (1.27mm)	Current Rating	2.4A per Contact
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Phosphor Bronze	Contact Length - Post	-
Contact Length - Mating	0.100" (2.54mm)	Contact Finish Thickness - Post	3.00µin (0.076µm)
Contact Finish Thickness - Mating	10.0µin (0.25µm)	Contact Finish - Post	Gold
Contact Finish - Mating	Gold	Connector Type	Header
Applications	-
