Samtec, Inc.
| Part Number | TMMH-103-01-T-T | Manufacturer | Samtec, Inc. |
|---|---|---|---|

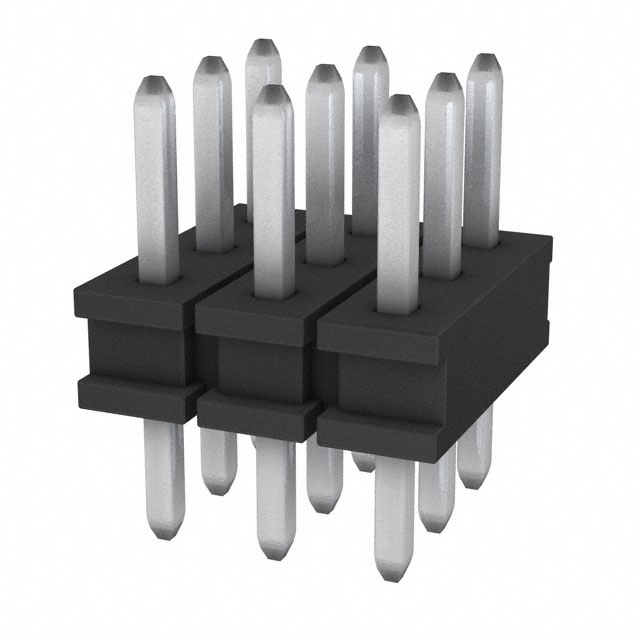

| Description | CONN HEADER 9POS TRIPLE VERT TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 84592 pcs | Data sheet | 1.TMMH-103-01-T-T.pdf2.TMMH-103-01-T-T.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board or Cable | Shrouding | Unshrouded |
| Series | TMMH | Row Spacing - Mating | 0.079" (2.00mm) |
| Pitch - Mating | 0.079" (2.00mm) | Packaging | Bulk |
| Overall Contact Length | 0.302" (7.67mm) | Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 3 | Number of Positions Loaded | All |
| Number of Positions | 9 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.079" (2.00mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 9 position 0.079" (2.00mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.097" (2.47mm) | Contact Length - Mating | 0.126" (3.20mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header, Cuttable | Applications | - |
