Samtec, Inc.

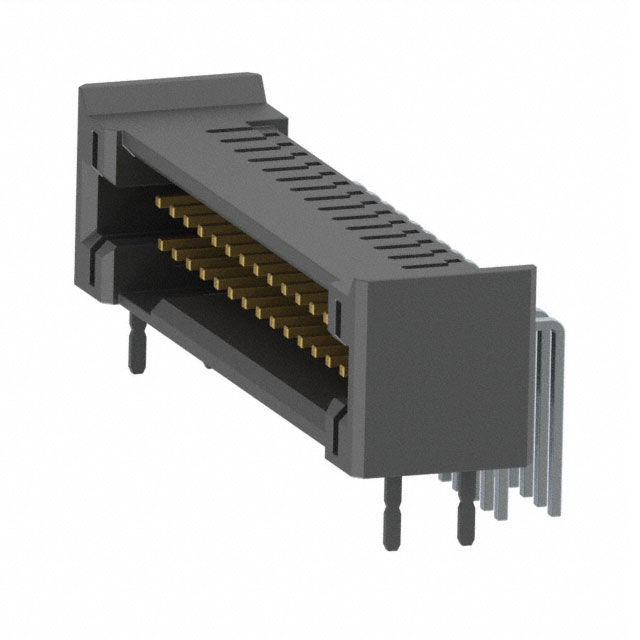

| Part Number | TFM-115-01-F-D-RE2-WT | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | .050 X .050 MICRO STRIPS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 17917 pcs | Data sheet | |
| Voltage Rating | 275VAC | Termination | Solder |
| Style | Board to Board or Cable | Shrouding | Shrouded - 4 Wall |
| Series | Tiger Eye™ TFM | Row Spacing - Mating | 0.050" (1.27mm) |
| Pitch - Mating | 0.050" (1.27mm) | Packaging | Tube |
| Overall Contact Length | - | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 30 | Mounting Type | Through Hole, Right Angle |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.240" (6.10mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Solder Retention | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole, Right Angle 30 position 0.050" (1.27mm) | Current Rating | 2.9A per Contact |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.110" (2.79mm) |
| Contact Length - Mating | 0.139" (3.53mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 3.00µin (0.076µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Header, Elevated |
| Applications | - |
