Samtec, Inc.
| Part Number | SSA-132-W-T | Manufacturer | Samtec, Inc. |
|---|---|---|---|

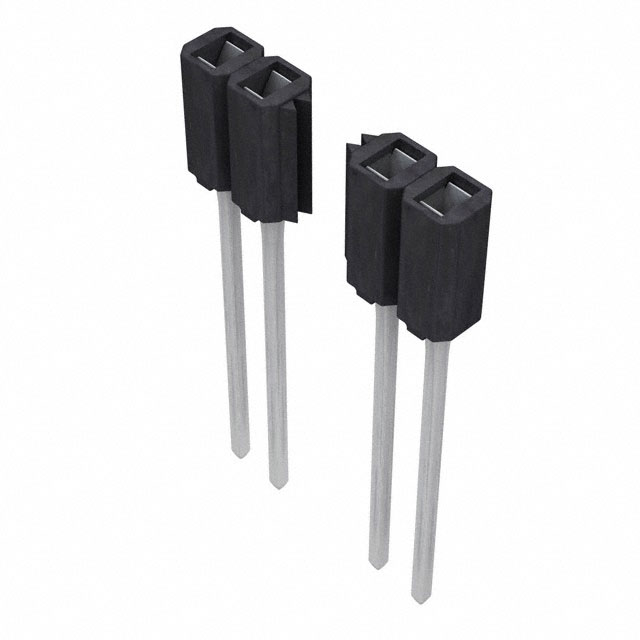

| Description | CONN RCPT .100" 32POS TIN WW | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 56415 pcs | Data sheet | 1.SSA-132-W-T.pdf2.SSA-132-W-T.pdf |
| Voltage Rating | 1000V | Termination | Wire Wrap |
| Style | Board to Board | Series | SSA |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Other Names | SAM1125-32 SAM8864 SAM8864-ND |
| Operating Temperature | -55°C ~ 105°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 32 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyethylene Terephthalate (PET), Polyester | Insulation Height | 0.230" (5.85mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 32 Position Receptacle, Breakaway Connector 0.100" (2.54mm) Through Hole Tin | Current Rating | - |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.656" (16.66mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - | Contact Finish - Mating | Tin |
| Connector Type | Receptacle, Breakaway | Applications | - |
