Samtec, Inc.

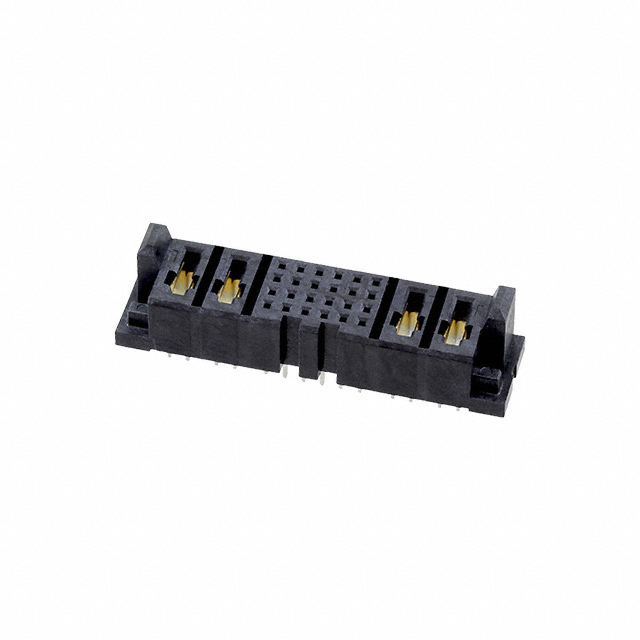

| Part Number | MPSC-02-24-02-7.70-01-L-V-LC | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | VERTICAL MINI-POWER W/SIGNAL SKT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 22443 pcs | Data sheet | 1.MPSC-02-24-02-7.70-01-L-V-LC.pdf2.MPSC-02-24-02-7.70-01-L-V-LC.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board | Series | Power Strip™ MPSC |
| Row Spacing - Mating | - | Pitch - Mating | - |
| Packaging | Tray | Other Names | SAM9723 |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 4 |
| Number of Positions Loaded | All | Number of Positions | 28 (24 + 4 Power) |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 4 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.298" (7.57mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Board Lock, Mounting Flange | Fastening Type | Push-Pull |
| Detailed Description | 28 (24 + 4 Power) Position Receptacle Connector Through Hole | Current Rating | - |
| Contact Type | Forked | Contact Shape | Square |
| Contact Material | - | Contact Length - Post | 0.107" (2.71mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | - |
