MEC1-170-02-F-D-A

Samtec, Inc.

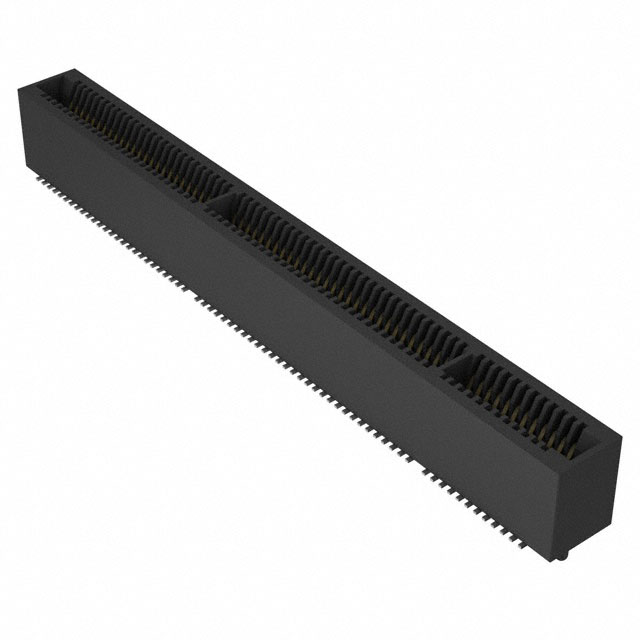

Image may be representation. See specifications for product details.

Product Overview

Part Number:	MEC1-170-02-F-D-A
Manufacturer/Brand:	Samtec, Inc.
Product description	1MM MINI-EDGE CARD ASSEMBLY
Datasheets:	1.MEC1-170-02-F-D-A.pdf 2.MEC1-170-02-F-D-A.pdf 3.MEC1-170-02-F-D-A.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	16971 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 16971 pcs

Reference Price (In US Dollars)

1 pcs: $3.305

10 pcs: $3.163

25 pcs: $2.875

50 pcs: $2.731

100 pcs: $2.659

250 pcs: $2.372

500 pcs: $2.228

1000 pcs: $1.969

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$3.305

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of MEC1-170-02-F-D-A

Part Number	MEC1-170-02-F-D-A	Manufacturer	Samtec, Inc.
Description	1MM MINI-EDGE CARD ASSEMBLY	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	16971 pcs	Data sheet	1.MEC1-170-02-F-D-A.pdf 2.MEC1-170-02-F-D-A.pdf 3.MEC1-170-02-F-D-A.pdf
Termination	Solder	Series	MEC1
Read Out	Dual	Pitch	0.039" (1.00mm)
Packaging	Tube	Other Names	MEC1-170-02-F-D-A-ND SAM11486
Operating Temperature	-55°C ~ 125°C	Number of Rows	2
Number of Positions/Bay/Row	-	Number of Positions	140
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material - Insulation	Liquid Crystal Polymer (LCP)	Manufacturer Standard Lead Time	3 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Gender	Female
Flange Feature	-	Features	Board Guide
Contact Type	Loop Bellows	Contact Material	Phosphor Bronze
Contact Finish Thickness	3.00µin (0.076µm)	Contact Finish	Gold
Color	Black	Card Type	Non Specified - Dual Edge
Card Thickness	0.062" (1.57mm)
