IPBT-102-H1-T-D-RA-K

Samtec, Inc.

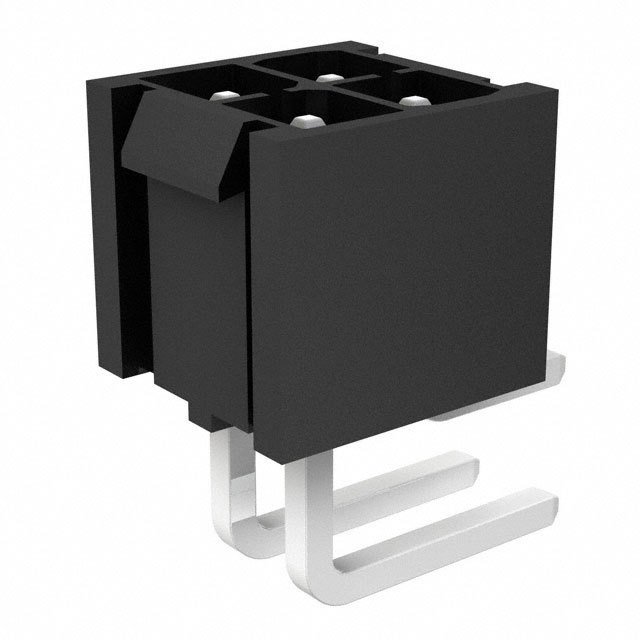

Image may be representation. See specifications for product details.

Product Overview

Part Number:	IPBT-102-H1-T-D-RA-K
Manufacturer/Brand:	Samtec, Inc.
Product description	.165 DOUBLE ROW TERMINAL ASSEMBL
Datasheets:	1.IPBT-102-H1-T-D-RA-K.pdf 2.IPBT-102-H1-T-D-RA-K.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	73948 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 73948 pcs

Reference Price (In US Dollars)

1 pcs: $0.666

10 pcs: $0.606

100 pcs: $0.519

500 pcs: $0.433

1000 pcs: $0.371

5000 pcs: $0.329

10000 pcs: $0.321

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.666

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of IPBT-102-H1-T-D-RA-K

Part Number	IPBT-102-H1-T-D-RA-K	Manufacturer	Samtec, Inc.
Description	.165 DOUBLE ROW TERMINAL ASSEMBL	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	73948 pcs	Data sheet	1.IPBT-102-H1-T-D-RA-K.pdf 2.IPBT-102-H1-T-D-RA-K.pdf
Voltage Rating	400VAC, 565VDC	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 4 Wall
Series	Power Mate® IPBT	Row Spacing - Mating	0.165" (4.20mm)
Pitch - Mating	0.165" (4.20mm)	Packaging	Tube
Overall Contact Length	-	Other Names	IPBT-102-H1-T-D-RA-K-ND SAM9088
Operating Temperature	-55°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	4
Mounting Type	Through Hole, Right Angle	Material Flammability Rating	UL94 V-0
Mated Stacking Heights	-	Manufacturer Standard Lead Time	3 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Liquid Crystal Polymer (LCP)
Insulation Height	0.424" (10.77mm)	Insulation Color	Black
Ingress Protection	-	Features	-
Fastening Type	Locking Ramp	Detailed Description	Connector Header Through Hole, Right Angle 4 position 0.165" (4.20mm)
Current Rating	-	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Copper Alloy
Contact Length - Post	0.147" (3.73mm)	Contact Length - Mating	0.260" (6.60mm)
Contact Finish Thickness - Post	-	Contact Finish Thickness - Mating	-
Contact Finish - Post	Tin	Contact Finish - Mating	Tin
Connector Type	Header	Applications	-
