Samtec, Inc.

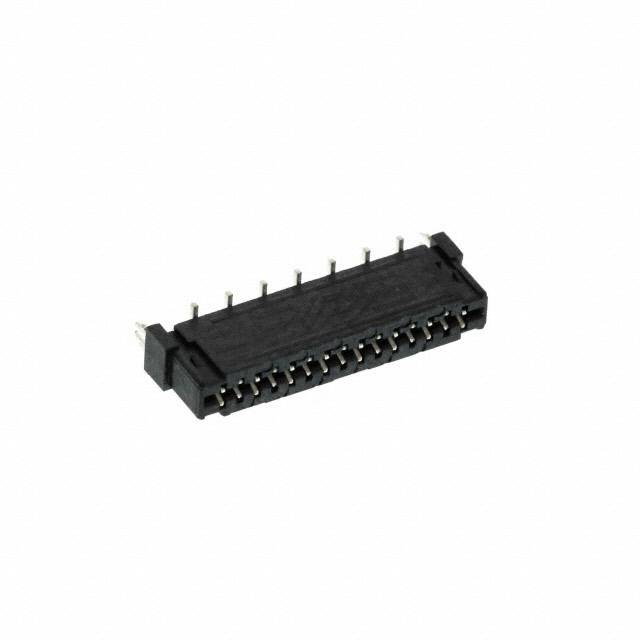

| Part Number | FC1-15-01-T-LC | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN FFC VERT 15POS 1.00MM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 84043 pcs | Data sheet | 1.FC1-15-01-T-LC.pdf2.FC1-15-01-T-LC.pdf |
| Voltage Rating | - | Termination | Solder |
| Series | FC1 | Pitch | 0.039" (1.00mm) |
| Packaging | Tube | Other Names | FC1-15-01-T-LC-ND SAM12543 |
| Operating Temperature | -55°C ~ 105°C | Number of Positions | 15 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 25 | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 3 Weeks | Locking Feature | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Liquid Crystal Polymer (LCP) |
| Housing Color | Black | Height Above Board | 0.204" (5.18mm) |
| Flat Flex Type | FFC | Features | Board Lock |
| FFC, FCB Thickness | 0.30mm | Detailed Description | 15 Position FFC Connector Contacts, Vertical, 2 Sided 0.039" (1.00mm) Surface Mount |
| Current Rating | 2A per Contact | Contact Material | Phosphor Bronze |
| Contact Finish Thickness | - | Contact Finish | Tin |
| Connector/Contact Type | Contacts, Vertical, 2 Sided | Cable End Type | - |
| Actuator Material | - | Actuator Color | - |
