Samtec, Inc.

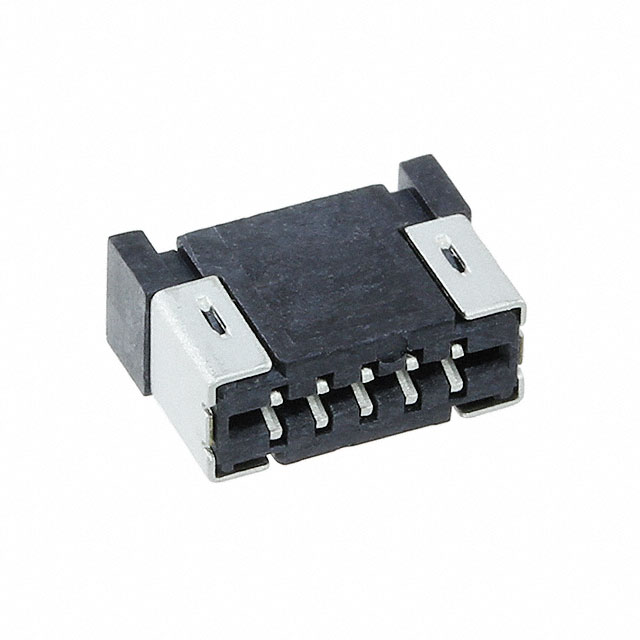

| Part Number | FC1-05-02-T-WT | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN FFC 5POS 1.00MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 71388 pcs | Data sheet | 1.FC1-05-02-T-WT.pdf2.FC1-05-02-T-WT.pdf |
| Voltage Rating | - | Termination | Solder |
| Series | FC1 | Pitch | 0.039" (1.00mm) |
| Packaging | Tube | Other Names | FC1-05-02-T-WT-ND Q8461599A SAM9013 |
| Operating Temperature | -55°C ~ 105°C | Number of Positions | 5 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 25 | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 3 Weeks | Locking Feature | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Liquid Crystal Polymer (LCP) |
| Housing Color | Black | Height Above Board | - |
| Flat Flex Type | FFC | Features | Solder Retention |
| FFC, FCB Thickness | 0.30mm | Detailed Description | 5 Position FFC Connector Contacts, Top and Bottom 0.039" (1.00mm) Surface Mount, Right Angle |
| Current Rating | 2A per Contact | Contact Material | Phosphor Bronze |
| Contact Finish Thickness | - | Contact Finish | Tin |
| Connector/Contact Type | Contacts, Top and Bottom | Cable End Type | - |
| Actuator Material | - | Actuator Color | - |
