EHT-120-01-SM-D

Samtec, Inc.Samtec, Inc.

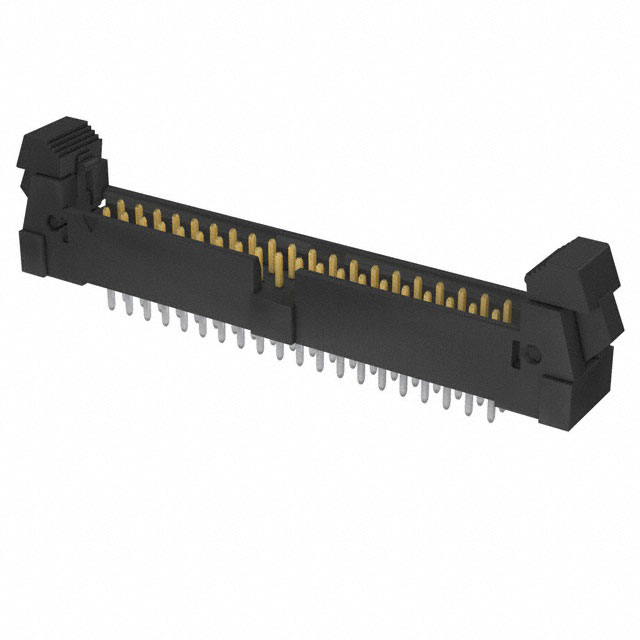

EHT-120-01-SM-D Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: EHT-120-01-SM-D
Manufacturer/Brand: Samtec, Inc.
Product description 2MM EJECTOR HEADER
Datasheets:
RoHs Status Lead free / RoHS Compliant
Stock Condition 6710 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 6710 pcs
Reference Price (In US Dollars)
1 pcs
$4.904
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$4.904

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of EHT-120-01-SM-D

Part Number EHT-120-01-SM-D Manufacturer Samtec, Inc.
Description 2MM EJECTOR HEADER Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 6710 pcs Data sheet
Voltage Rating - Termination Solder
Style Board to Cable/Wire Shrouding Shrouded - 4 Wall
Series EHT Row Spacing - Mating 0.079" (2.00mm)
Pitch - Mating 0.079" (2.00mm) Packaging Tube
Overall Contact Length - Operating Temperature -55°C ~ 125°C
Number of Rows 2 Number of Positions Loaded All
Number of Positions 40 Mounting Type Through Hole
Material Flammability Rating UL94 V-0 Mated Stacking Heights -
Manufacturer Standard Lead Time 3 Weeks Lead Free Status / RoHS Status Lead free / RoHS Compliant
Insulation Material Liquid Crystal Polymer (LCP) Insulation Height 0.370" (9.40mm)
Insulation Color Black Ingress Protection -
Features Keying Slot Fastening Type Latch Lock/Eject Hooks
Detailed Description Connector Header Through Hole 40 position 0.079" (2.00mm) Current Rating 3A
Contact Type Male Pin Contact Shape Square
Contact Material Phosphor Bronze Contact Length - Post 0.114" (2.90mm)
Contact Length - Mating 0.120" (3.05mm) Contact Finish Thickness - Post -
Contact Finish Thickness - Mating 30.0µin (0.76µm) Contact Finish - Post Tin
Contact Finish - Mating Gold Connector Type Header
Applications -
