Samtec, Inc.

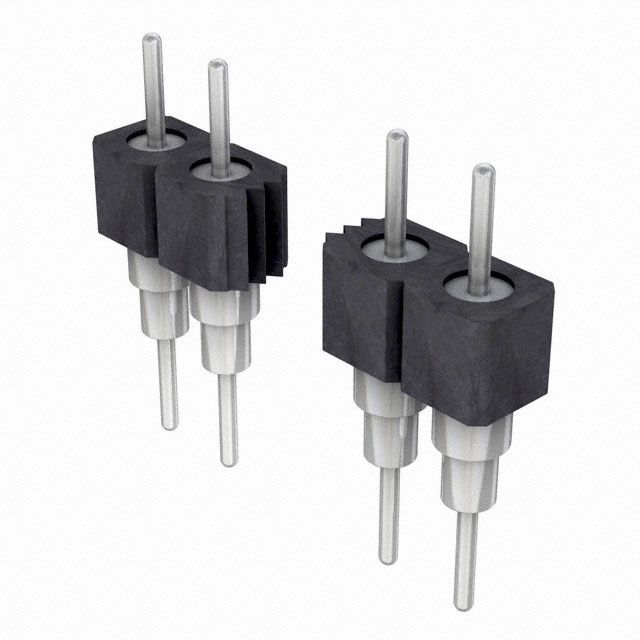

| Part Number | BBS-132-T-A | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN HEADER 32POS .100 PCB TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 44204 pcs | Data sheet | 1.BBS-132-T-A.pdf2.BBS-132-T-A.pdf3.BBS-132-T-A.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board | Shrouding | Unshrouded |
| Series | BBS | Row Spacing - Mating | - |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tube |
| Overall Contact Length | 0.460" (11.68mm) | Other Names | SAM1005-32 |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 32 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyester, Glass Filled | Insulation Height | 0.211" (5.35mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 32 position 0.100" (2.54mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Circular |
| Contact Material | - | Contact Length - Post | 0.125" (3.18mm) |
| Contact Length - Mating | 0.125" (3.18mm) | Contact Finish Thickness - Post | 50.0µin (1.27µm) |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Nickel |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | - |
