TDA7560H

STMicroelectronics

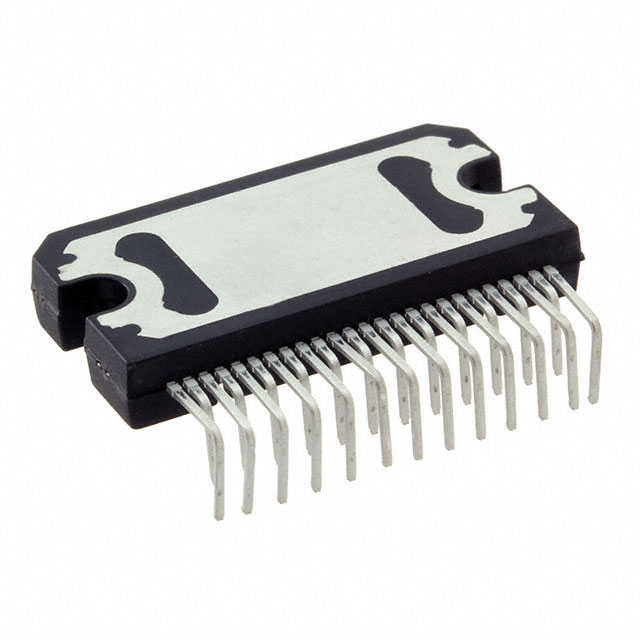

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TDA7560H
Manufacturer/Brand:	STMicroelectronics
Product description	IC AMP QUAD MULTIFUNC FLEXIWATT2
Datasheets:	TDA7560H.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	13508 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 13508 pcs

Reference Price (In US Dollars)

1 pcs: $4.124

17 pcs: $3.727

102 pcs: $3.086

510 pcs: $2.687

1003 pcs: $2.34

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$4.124

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TDA7560H

Part Number	TDA7560H	Manufacturer	STMicroelectronics
Description	IC AMP QUAD MULTIFUNC FLEXIWATT2	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	13508 pcs	Data sheet	TDA7560H.pdf
Voltage - Supply	8 V ~ 18 V	Type	Class AB
Supplier Device Package	25-Flexiwatt (Horizontal)	Series	-
Packaging	Tube	Package / Case	25-Flexiwatt (Formed Leads)
Output Type	4-Channel (Quad)	Other Names	497-11757-5 TDA7560H-ND
Operating Temperature	-	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Max Output Power x Channels @ Load	80W x 4 @ 2 Ohm
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Mute, Short-Circuit and Thermal Protection, Standby	Detailed Description	Amplifier IC 4-Channel (Quad) Class AB 25-Flexiwatt (Horizontal)
Base Part Number	TDA7560
