STL20N6F7

STMicroelectronics

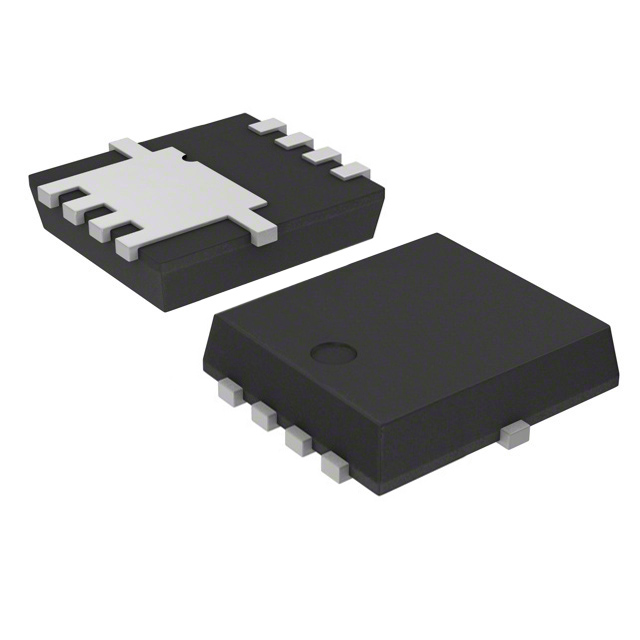

Image may be representation. See specifications for product details.

Product Overview

Part Number:	STL20N6F7
Manufacturer/Brand:	STMicroelectronics
Product description	MOSFET N-CH 60V 100A
Datasheets:	STL20N6F7.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	121620 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 121620 pcs

Reference Price (In US Dollars)

1 pcs: $0.427

10 pcs: $0.379

100 pcs: $0.30

500 pcs: $0.232

1000 pcs: $0.183

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.427

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of STL20N6F7

Part Number	STL20N6F7	Manufacturer	STMicroelectronics
Description	MOSFET N-CH 60V 100A	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	121620 pcs	Data sheet	STL20N6F7.pdf
Vgs(th) (Max) @ Id	4V @ 250µA	Vgs (Max)	±20V
Technology	MOSFET (Metal Oxide)	Supplier Device Package	PowerFlat™ (3.3x3.3)
Series	STripFET™ F7	Rds On (Max) @ Id, Vgs	5.4 mOhm @ 10A, 10V
Power Dissipation (Max)	3W (Ta), 78W (Tc)	Packaging	Cut Tape (CT)
Package / Case	8-PowerVDFN	Other Names	497-16117-1
Operating Temperature	-55°C ~ 150°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Input Capacitance (Ciss) (Max) @ Vds	1600pF @ 25V	Gate Charge (Qg) (Max) @ Vgs	25nC @ 10V
FET Type	N-Channel	FET Feature	-
Drive Voltage (Max Rds On, Min Rds On)	10V	Drain to Source Voltage (Vdss)	60V
Detailed Description	N-Channel 60V 100A (Tc) 3W (Ta), 78W (Tc) Surface Mount PowerFlat™ (3.3x3.3)	Current - Continuous Drain (Id) @ 25°C	100A (Tc)

Shipment
After-Sales
Datasheets

★ FREE SHIPPING VIA DHL/FEDEX/UPS IF ORDER AMOUNT OVER 1,000 USD.
(ONLY FOR Integrated Circuits, Circuit Protection, RF/IF and RFID, Optoelectronics, Sensors, Transducers, Transformers, Isolators, Switches, Relays)

FEDEX	www.FedEx.com	From $35.00 basic shipping fee depend on zone and country.
DHL	www.DHL.com	From $35.00 basic shipping fee depend on zone and country.
UPS	www.UPS.com	From $35.00 basic shipping fee depend on zone and country.
TNT	www.TNT.com	From $35.00 basic shipping fee depend on zone and country.

★ Delivery time will need 2-4 Days to most of country all over the world by DHL/UPS/FEDEX/TNT.

Please feel free to contact us if you have any questions about the shipment. E-mail us [email protected]

AFTER-SALES GUARANTEE

Each product from Ocean-Components.com has been given a warranty period of 1 YEAR .During this period , we could provide free technical maintenance if there are any problems about our products.
If you find quality problems about our products after receiving them, you could test them and apply for unconditional refund if it can be proved.
If the products are defective or they don't working, you can return to us within 1 YEAR, all transportation and customs charges of the goods are borne by us.
